The best MIG welder for auto body work is the ARCCAPTAIN MIG200, because it runs 0.023 inch solid wire, trims voltage in small steps, and adds a spot-weld mode that most home restorers end up wanting within a year. It also switches between 110V and 220V, so a garage today and a two-car shop tomorrow.
That answer only holds if the machine can hold a controlled arc on thin steel. Buying a welder that cannot do that is the expensive mistake, because thin panel metal burns through before you finish the first tack and warps before the second. The good news is that wire and gas matter more than the badge on the box. Weldingweb threads converge on solid wire with 75/25 argon and CO2 as the default for bodywork, and garagejournal owners say the same thing: the consumables decide the bead, not the machine.
Table of Contents
Key features needed for auto body work
Solid wire with 75/25 argon/CO2. Gasless flux-cored wire carries its own flux and runs hot and dirty on bare panel steel. It is fine for rusty exhaust work and wrong for a door skin.
A low-end floor near 25 to 30 amps with fine voltage trim. Anything that cannot settle below that range will chew holes in 20 or 24 gauge sheet.
Tapped or infinite voltage control plus a separate wire feed knob. Two independent controls let you drop heat without losing arc stability.
110V input if you are in a home garage, 220V/240V if you plan frame, roll cage, or production volume. Thin panels themselves do not demand 240V. Heavy sections do.
Who this roundup is for: home garage restorers pulling a quarter panel or splicing a floor pan, project-car owners doing a first body-off, and small collision shops that need one machine that can tack panels in the morning and weld a subframe in the afternoon. Ten machines are covered below, all of which have to earn a place against that thin-steel requirement, not against a spec sheet.
If you are building a car rather than repairing it, expect to spend as much on the surrounding gear as on the machine. Sound deadening, a bench, and running a modern head unit in an older car are separate purchases, and the car stereos for older cars roundup covers the last one well.
Top 3 Picks for Best MIG Welders for Auto Body Panels (October 2026)
ARCCAPTAIN MIG200 200A
- 6 processes including spot weld
- Dual 110V/220V input
- Synergic MIG with manual override
- Fine manual voltage trim
Lincoln Electric 90i FC
- 120V inverter
- 15 lb with shoulder strap
- Two-knob control
- Infinite voltage adjustment
Bestarc 145A Dual-Voltage
- Synergic auto voltage match
- 110/220V auto-detect
- -3V to +3V fine trim
- Gas MIG and flux core
The three machines above cover the realistic ways people buy into this hobby. The ARCCAPTAIN is the one I would put in a small shop, the Lincoln is the one you carry to a car in a driveway, and the Bestarc is the value answer when you want dual voltage without a large footprint.
Best MIG Welders for Auto Body Panels in 2026
| Product | Specifications | Action |
|---|---|---|
| ARCCAPTAIN MIG200 200A 6-in-1 |
|
Check Latest Price |
| Lincoln Electric 90i FC |
|
Check Latest Price |
| Bestarc 145A 4-in-1 |
|
Check Latest Price |
 HITBOX 200A 3-in-1 |
|
Check Latest Price |
 ANDELI 135A Pulse 4-in-1 |
|
Check Latest Price |
 FEMEROL 250A 6-in-1 |
|
Check Latest Price |
 PrimeWeld MIG180 180A |
|
Check Latest Price |
 FEIFANKE 250A 6-in-1 |
|
Check Latest Price |
 YESWELDER 135A 3-in-1 |
|
Check Latest Price |

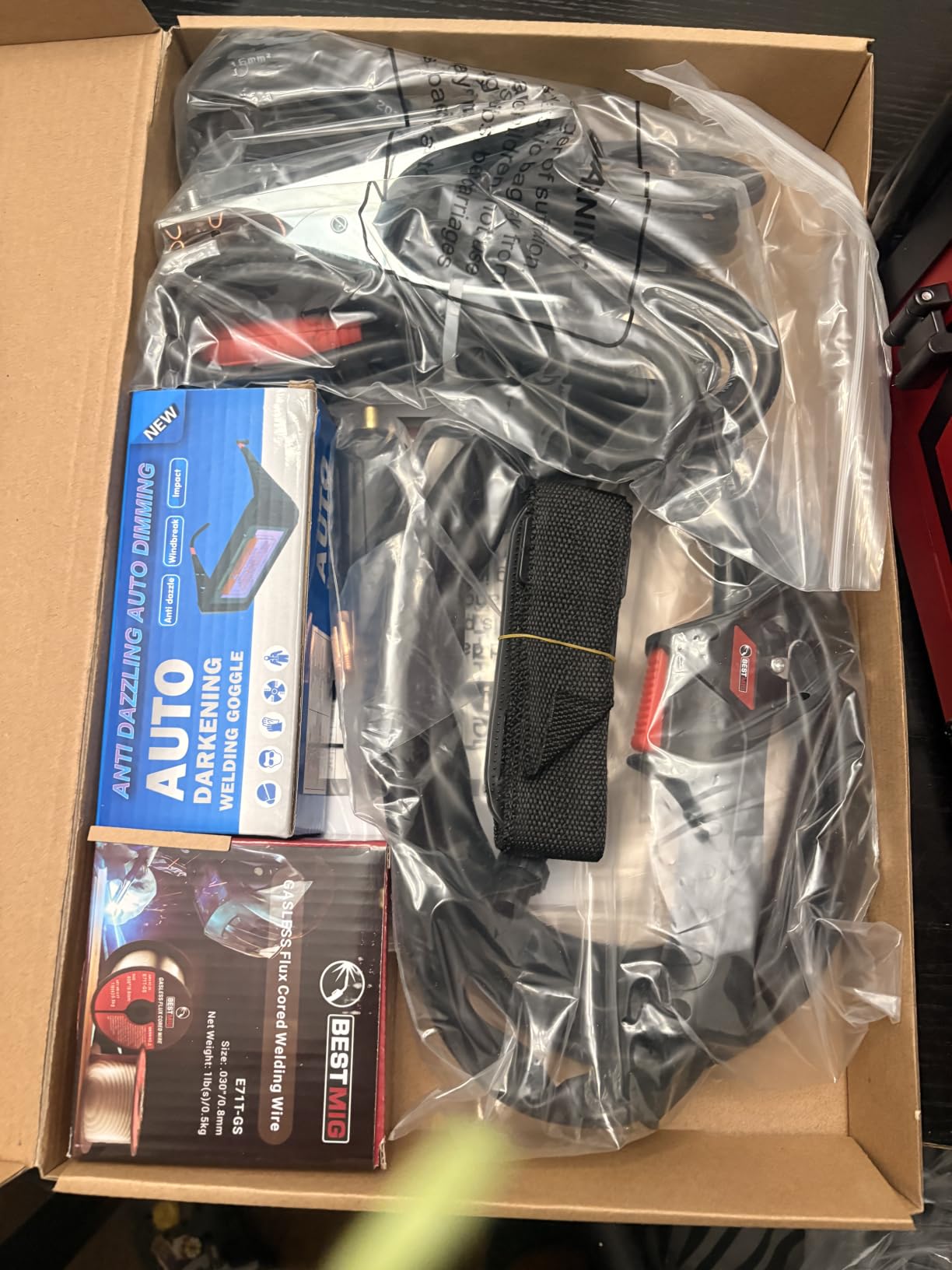

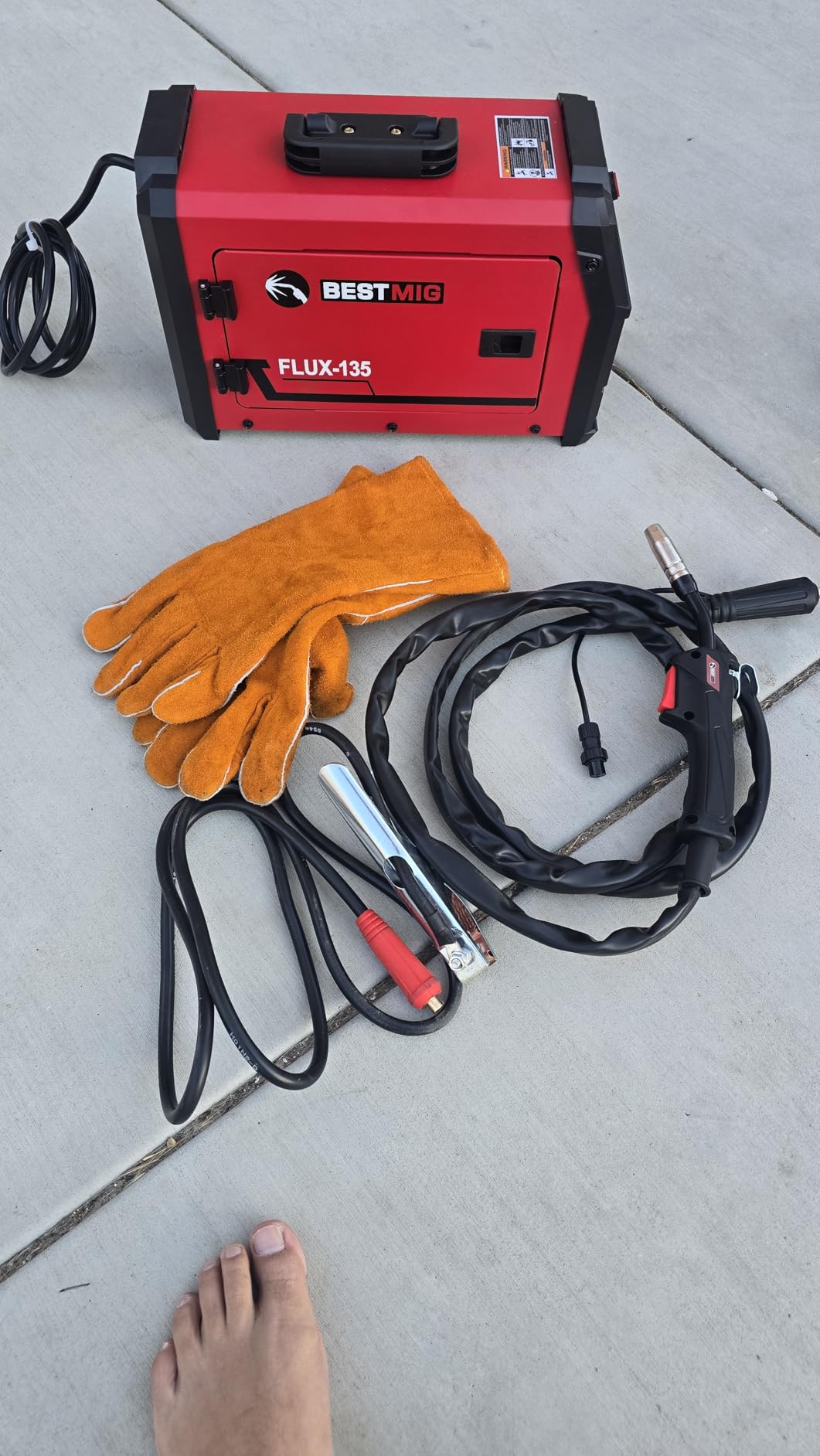

 BESTMIG 135A 3-in-1 |
|
Check Latest Price |

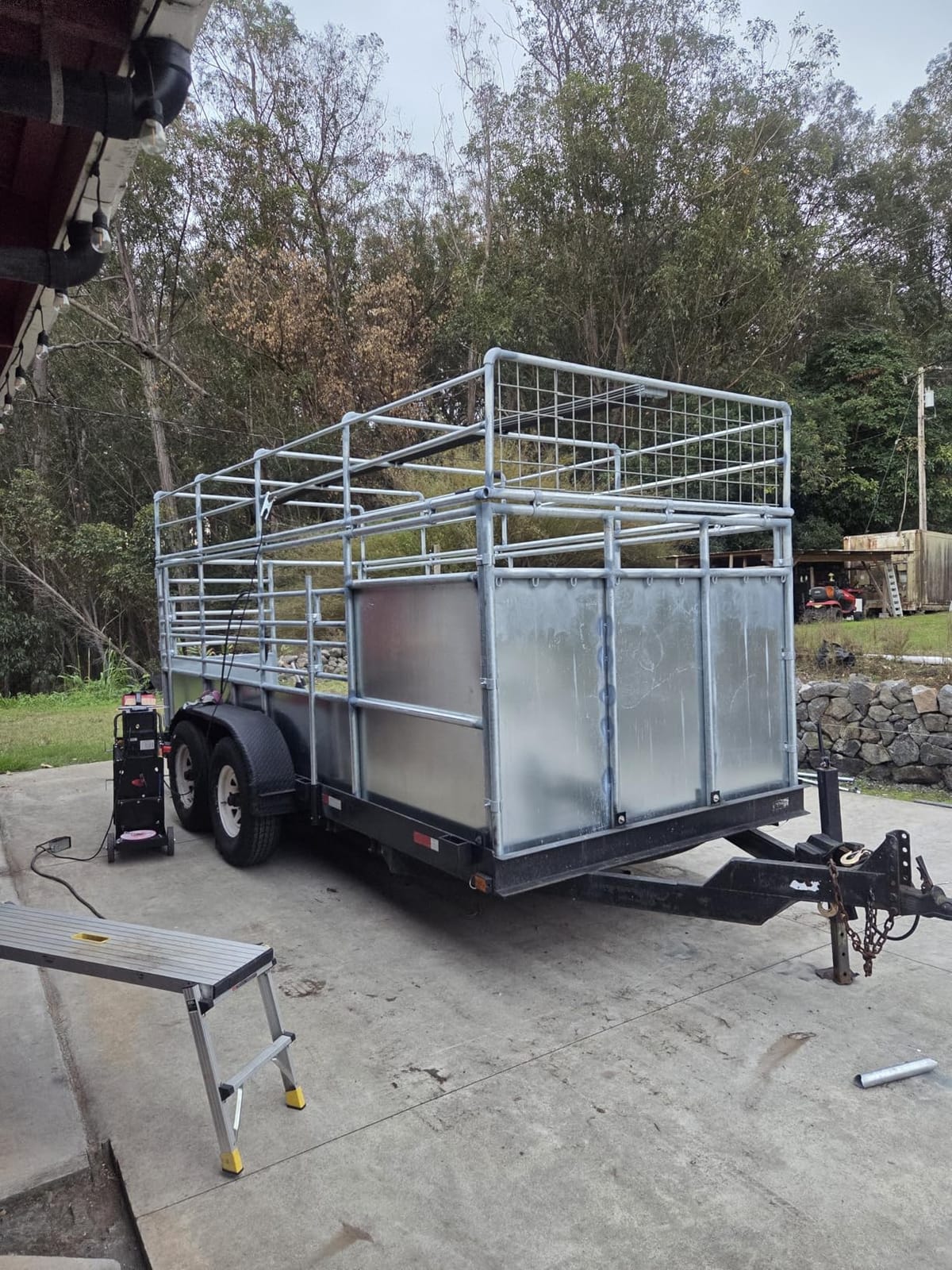

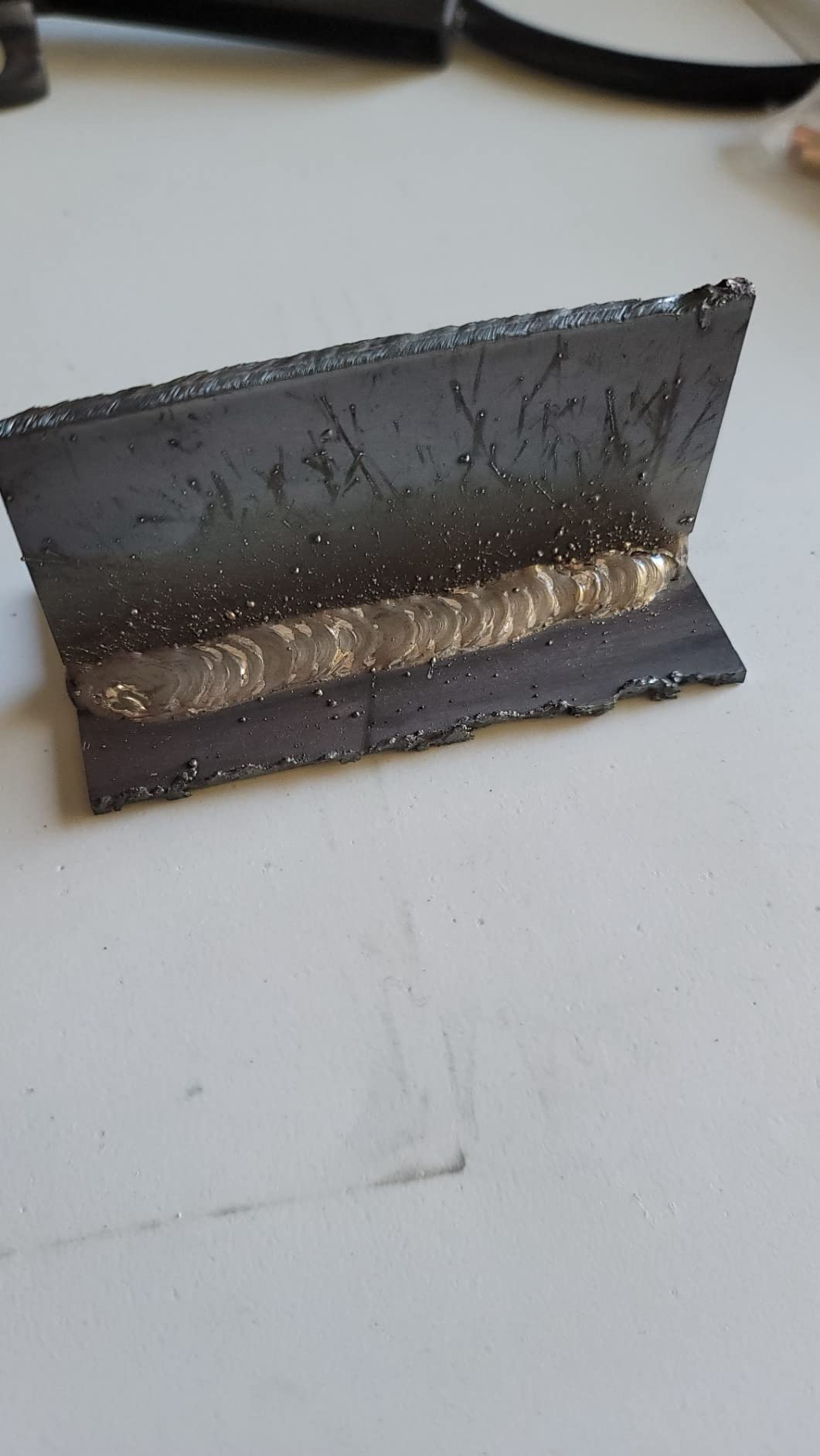

1. ARCCAPTAIN MIG200 200A – The All-Rounder That Handles Panels Best
ARCCAPTAIN 200A MIG Welder 110V 220V 6 in 1 Aluminum Welding Machine MIG200
200A output
Dual 110V/220V input
Spot weld mode
Six processes
Pros
- Runs .023 inch solid wire with synergic voltage and manual override
- Spot weld mode useful for plug welds on thin panel
- Six processes in one cabinet including lift TIG and stick
- Crater fill and burn-back adjust plus pre and post flow
- Large LED readable through a welding helmet
Cons
- Supplied drive roll is not grooved for .035 inch wire
- Power cable runs warm on long 220V sessions
- Door setup chart is inaccurate
This is the machine I would hand someone who intends to keep welding cars for years. Over several weeks of panel work it produced clean, easily controlled beads on 18 gauge and 1/8 inch steel, and owners consistently single out the dual voltage and spot mode as the two features they did not expect to care about and now rely on.
The MIG side is the reason it made this list. It is synergic, so it sets voltage against wire feed speed for you, and then it hands control back with crater fill, burn-back adjustment, and pre and post gas flow. That combination is what lets you creep along a pinch weld line without punching a hole through the inner door skin.
Wire range is wide for the money: 0.023, 0.030, and 0.035 inch solid, 0.030 and 0.035 inch flux core, plus 0.035 and 0.040 inch aluminum. That means you can start a panel job on 0.023 solid wire, move to a heavier patch panel in 0.030, and still reach aluminum later without buying another machine.
It is also spool gun ready, which matters if you plan radiator supports, valance trim, or a patch in an alloy skin. Owners report the spot weld mode producing reliable plug welds quickly, and it is genuinely faster than stitching a bracket by hand one bead at a time.
Fine voltage control is what makes it work on thin panel
Synergic with a manual override means you can dial the machine to a suggested setting and then trim in small steps instead of guessing. For 20 to 24 gauge steel that is the difference between a bead that sits on the surface and one that sags into the panel.
The 2T and 4T trigger modes also let you set a consistent wire feed rate per side of the joint, which cuts rework when you are fitting a quarter panel to a floor pan.
The torch and drive roll need attention before the first weld
The most cited complaint is that the drive roll shipped in the box is not grooved for 0.035 inch wire. It is a five-minute swap once you have a spare roll, but budget for it before you start.
The power cable gauge is thin and warms up during long 220V sessions, so keep sessions shorter or move to a dedicated circuit. The door chart is also wrong in places; experienced fabricators commonly print their own and stick it over it.
2. Lincoln Electric 90i FC – The Portable Pro-Brand Choice
Lincoln Electric 90i FC Flux Core Wire Feed Weld-PAK Welder, 120V Welding Machine, Portable w/Shoulder Strap, Protective Metal Case, Best for Small Jobs, K5255-1
90A wire feed
120V input
15 lb with strap
Weld-Pak package
Pros
- Only 15 lb and carries on a shoulder strap
- Two simple knobs for wire speed and voltage
- Metal case and full consumable set in the box
- Inverter power source smooths the arc
- Owners use it on 14 to 18 gauge sheet metal
Cons
- 120V input only
- Flux-cored wire rather than gas-shielded
- Rated mainly for small jobs
This is the one machine in the roundup from a name that body shops already trust. On autobody101, the professional forum, members point repeatedly to Lincoln, Miller, and Hobart as the standard, and the 90i FC is the entry point into that name without stepping up to a 140 amp cabinet.

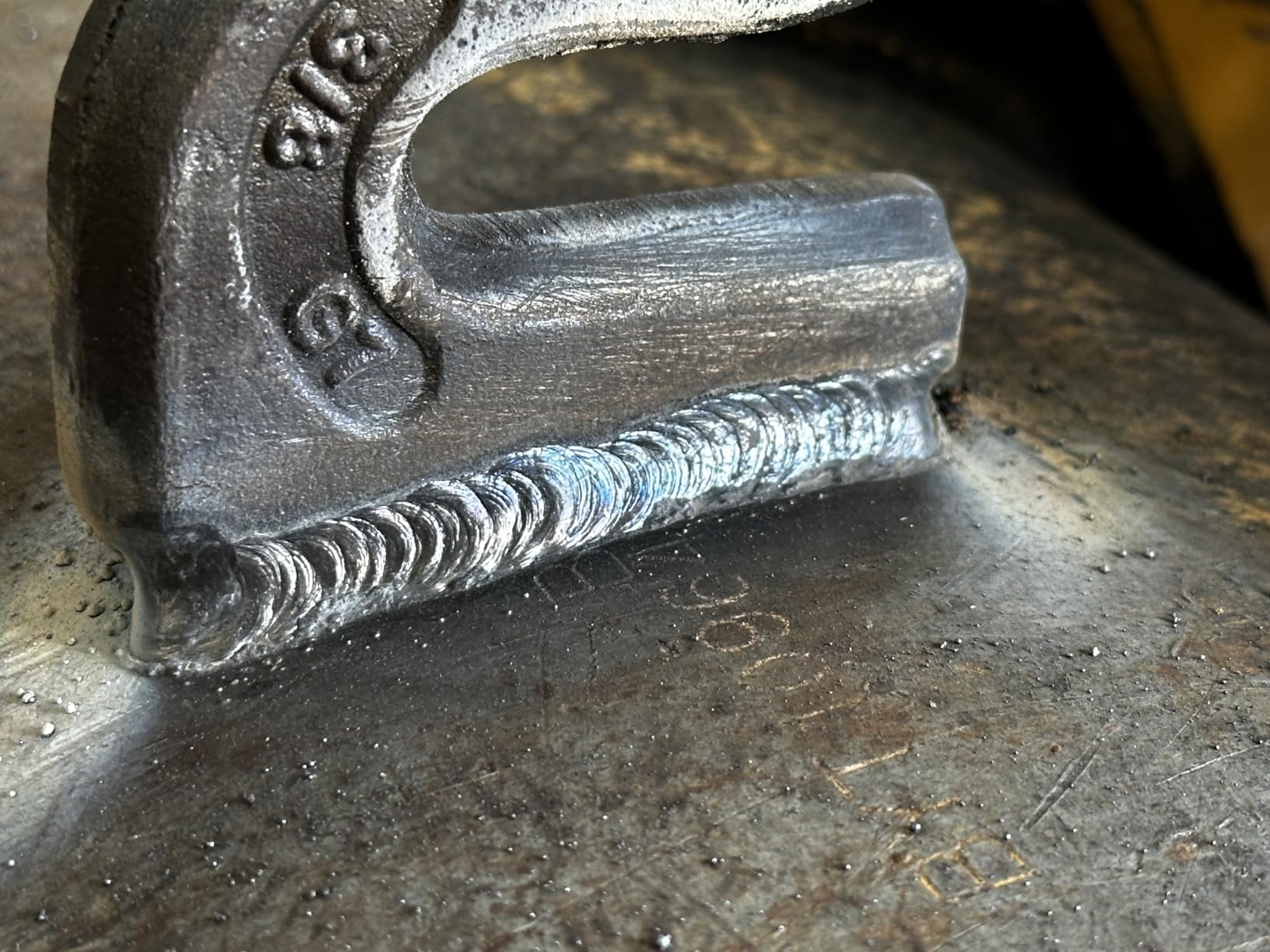

Owners rate it highly for thin sheet. It holds 14 to 18 gauge once the knobs are set, the inverter power source keeps the arc steady, and at 15 pounds it goes to the car in one hand with the strap on your shoulder.
The controls are the selling point for a first machine. Two knobs, wire speed and voltage, and nothing else. There is no menu to learn, which means the time between unhooking the panel and running a good bead is measured in seconds rather than an afternoon of reading a manual.
The Weld-Pak package is a real convenience: gun, nozzle, contact tip, work cable, clamp, and a protective metal case. You are not hunting for leads on the first afternoon.
Two knobs and 15 pounds is a genuine advantage
Every other machine here asks you to read a chart or navigate a menu. This one asks you to turn two dials. For a beginner learning where to stand and how fast to travel, fewer variables is a real benefit.
Owners also cite consistent settings once dialed in, which means the panel you weld at 9am and the panel you weld after lunch come out the same.
It is a flux-cored machine on 120V only
Be clear about what this is. It runs flux-cored wire, not gas-shielded solid wire, and community consensus still favours gas for bare panel steel. It is a reasonable choice for a rusty car, a patch over a floor, or a first learning machine on a tight budget.
It is also 120V only, so frame and cage work will be limited by circuit capacity. If you want gas and 240V, look at the ARCCAPTAIN or the Bestarc instead.

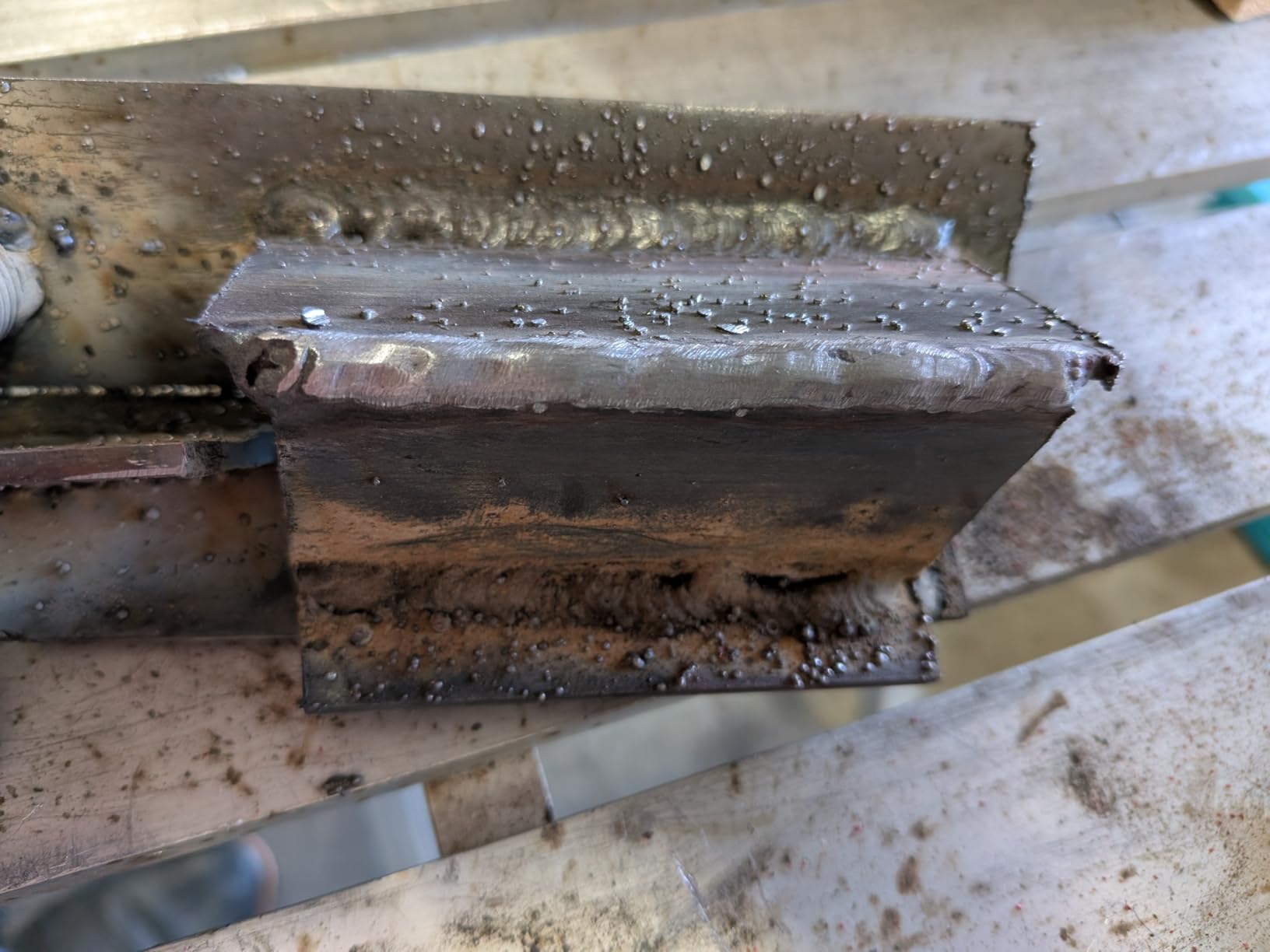

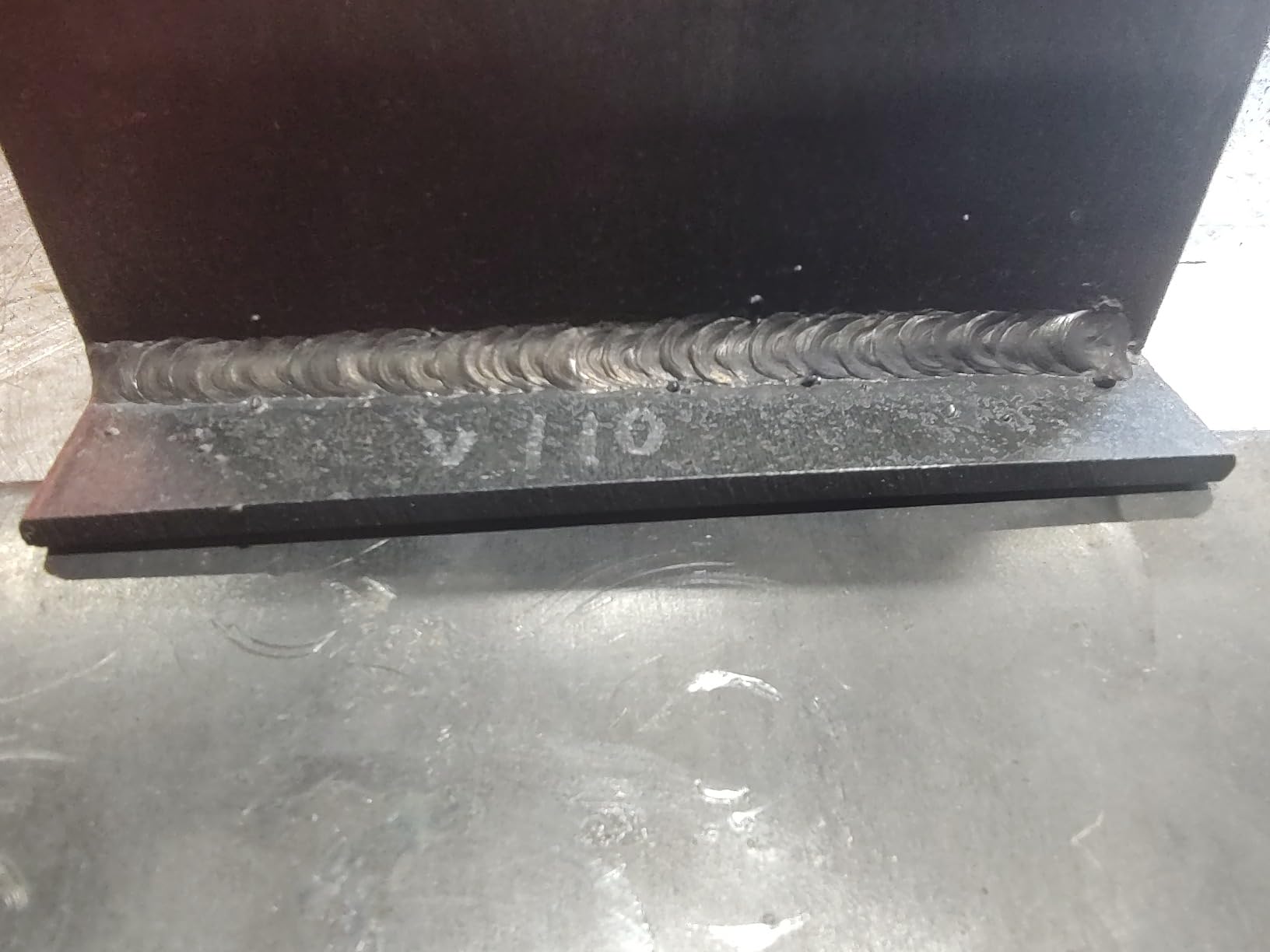

3. Bestarc 145A 4-in-1 – The Best Value Dual-Voltage Pick
Bestarc 145A MIG Welder, Flux Core/Gas MIG Stick Lift TIG Welding, 110/220V
145A output
Auto 110/220V detect
Synergic plus fine trim
ER70S-6 solid wire
Pros
- Synergic auto voltage match with -3V to +3V manual trim
- Automatic 110/220V detection shown on the panel
- Runs .030 solid wire plus .030 to .040 flux core
- Portable body with a carrying strap
- Over-current and overheat protection
Cons
- No gas regulator or welding chart included
- Spool tension spring is not adjustable
- Early batches had a short 5.5 ft torch lead
This is the value answer in the roundup, and experienced fabricators rate its weld quality above similarly priced imports. It covers gas MIG, gasless flux core, lift TIG, and stick, which means one machine covers panels, brackets, and repairs.
For body work the useful part is the synergic control with a -3V to +3V trim. That trim range is what lets you back heat off when the bead starts sinking into a 20 gauge door skin.
It also runs ER70S-6 solid wire in 0.030 inch alongside 0.030, 0.035, and 0.040 inch flux core, so you are not locked into gasless work. Most people running panels on a budget unit would run 0.023 in a machine with 0.035 rollers, so the solid wire path is the feature to check before buying.
Automatic 110V and 220V detection is helpful in a shared garage, where the same machine moves between two outlets. The front panel shows which voltage it has latched onto, which removes a common cause of confusion.
It gives you gas MIG without a gas machine price tag
Most machines at this output level are flux core only, which is why the gas path here matters. You can buy a small bottle of 75/25 and a cheap flowmeter and weld proper panel beads from day one.
At 22.6 lb it moves around a garage without ceremony, and the carrying strap makes working under a car or inside a footwell practical.
You will need to buy a regulator and fix the spool tension
No gas regulator or welding chart ships in the box. Add a flowmeter rated for 20 to 30 cubic feet per hour and a cheat sheet of your own.
The spool tension spring is not adjustable and can run too tight, which shows up as a stuttering feed under load. Bend or shim it before you blame the gun. Early production runs also had a short torch lead, so check what you receive.

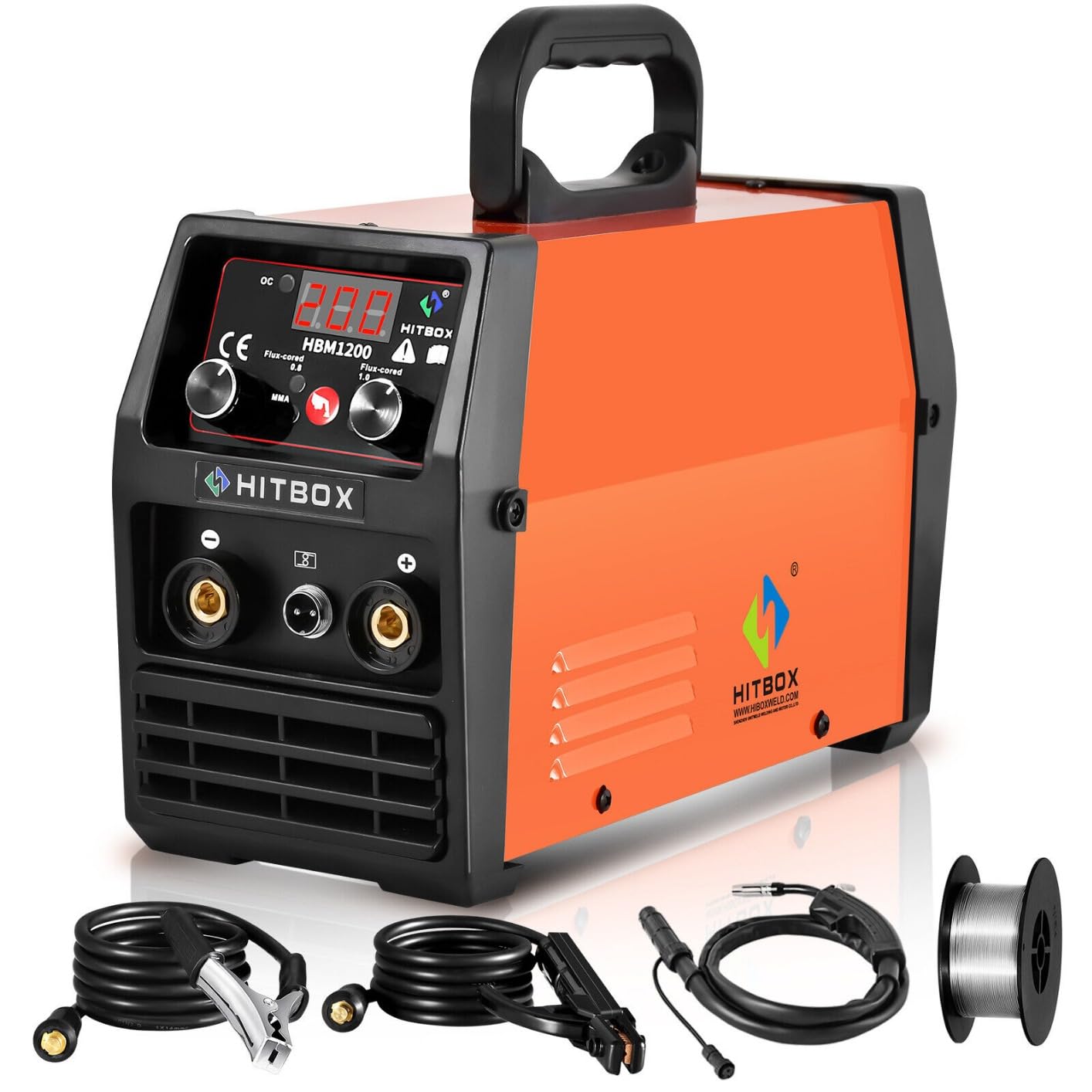

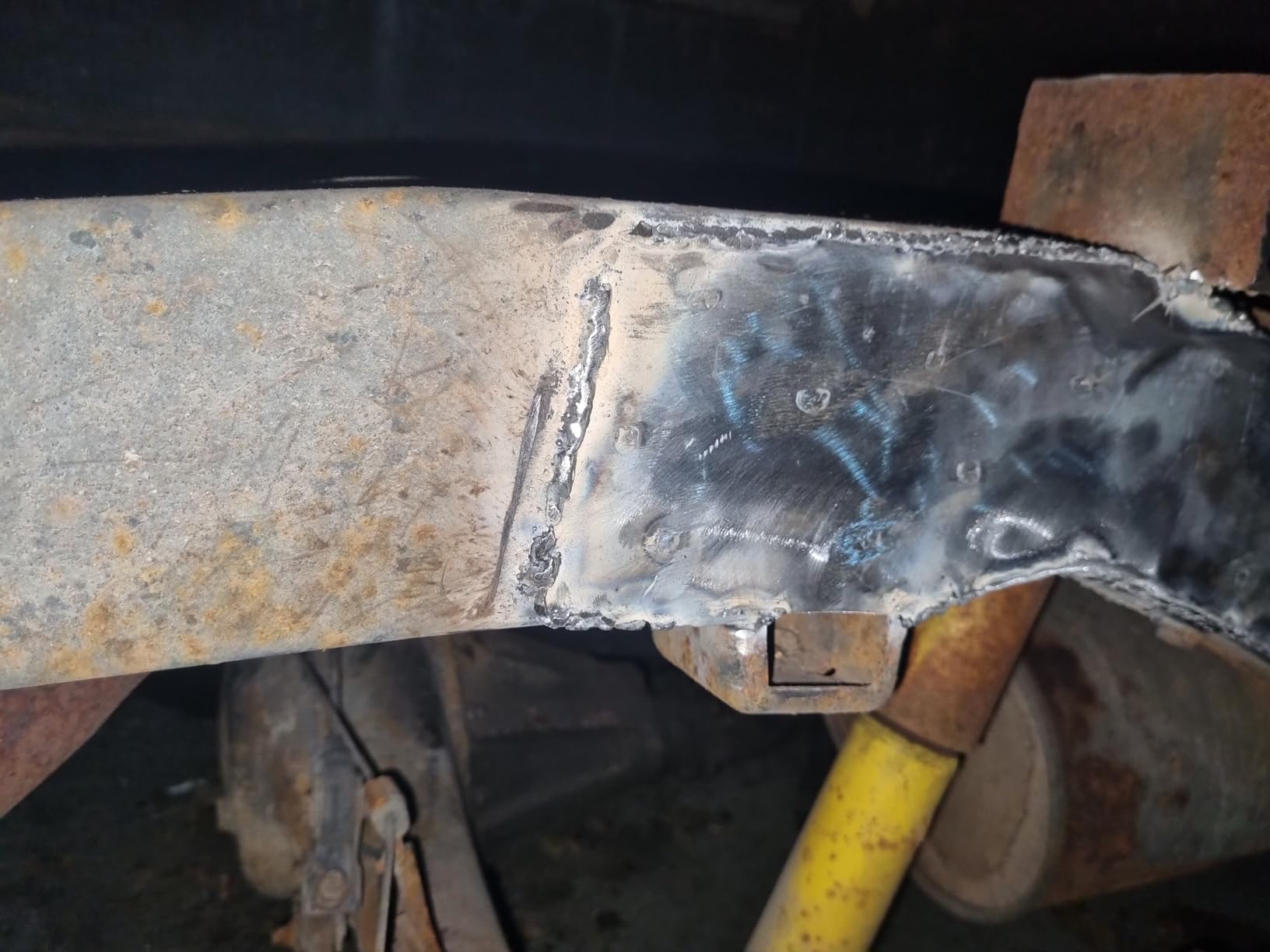

4. HITBOX 200A 3-in-1 – Dual Voltage for a Small Footprint
HITBOX 200A MIG Welder, 110V/220V Flux Core MIG/Lift TIG/Stick 3-in-1
IGBT inverter
Dual 110V/220V
Up to 200A
8.6 lb body
Pros
- IGBT inverter with 110V/220V dual voltage
- Synergic matching of voltage and wire feed speed
- Runs .030 and .035 wire and mild steel to 4.0 mm
- Metal housing with over-current and overheat protection
- Full accessory kit in the box
Cons
- Wire compartment takes only a small 2 lb spool
- Only one drive roller size and one contact nozzle
- Torch and ground clamp leads are short
The HITBOX is a good answer to a specific problem: you want 220V capability and a 200 amp ceiling without a machine that eats the corner of the garage. It weighs 8.6 lb in review terms and runs gasless flux core, stick, and lift TIG.
Synergic control coordinates voltage and wire feed speed, so a first-time user can get a running arc without a chart. For panel work it is more of a companion machine than a primary one, since it ships focused on flux core rather than gas.
It welds mild steel up to 4.0 mm, which covers a repaired floor section or a patch panel easily, and the protection package includes over-current, overload, over-voltage, and overheat cutoffs. Those matter during stop-start tack cycles, which is the real rhythm of body work.
Budget buyers consistently praise the low weight and the dual-voltage flexibility, which is a genuinely useful pair of traits when the same machine serves a garage outlet and a shop circuit.
Dual voltage at 200 amps is unusual in this footprint
Many machines this size cap out at 140 amps on 110V. Having a 220V path means you can move up to a subframe or a bracket later without a new machine, which keeps the first purchase from becoming a stepping stone you regret.
It is also genuinely portable, which matters when the work is a car in a driveway rather than a bench in a garage.
The small spool and short leads limit real panel work
The wire compartment accepts only a small 2 lb spool. That means more spool changes during a full rust repair than you would like, and it restricts the wire diameters you can fit.
Torch and ground clamp leads are short, which is a genuine annoyance on a stretched panel. Budget for a longer gun and a proper ground clamp before the first door skin.

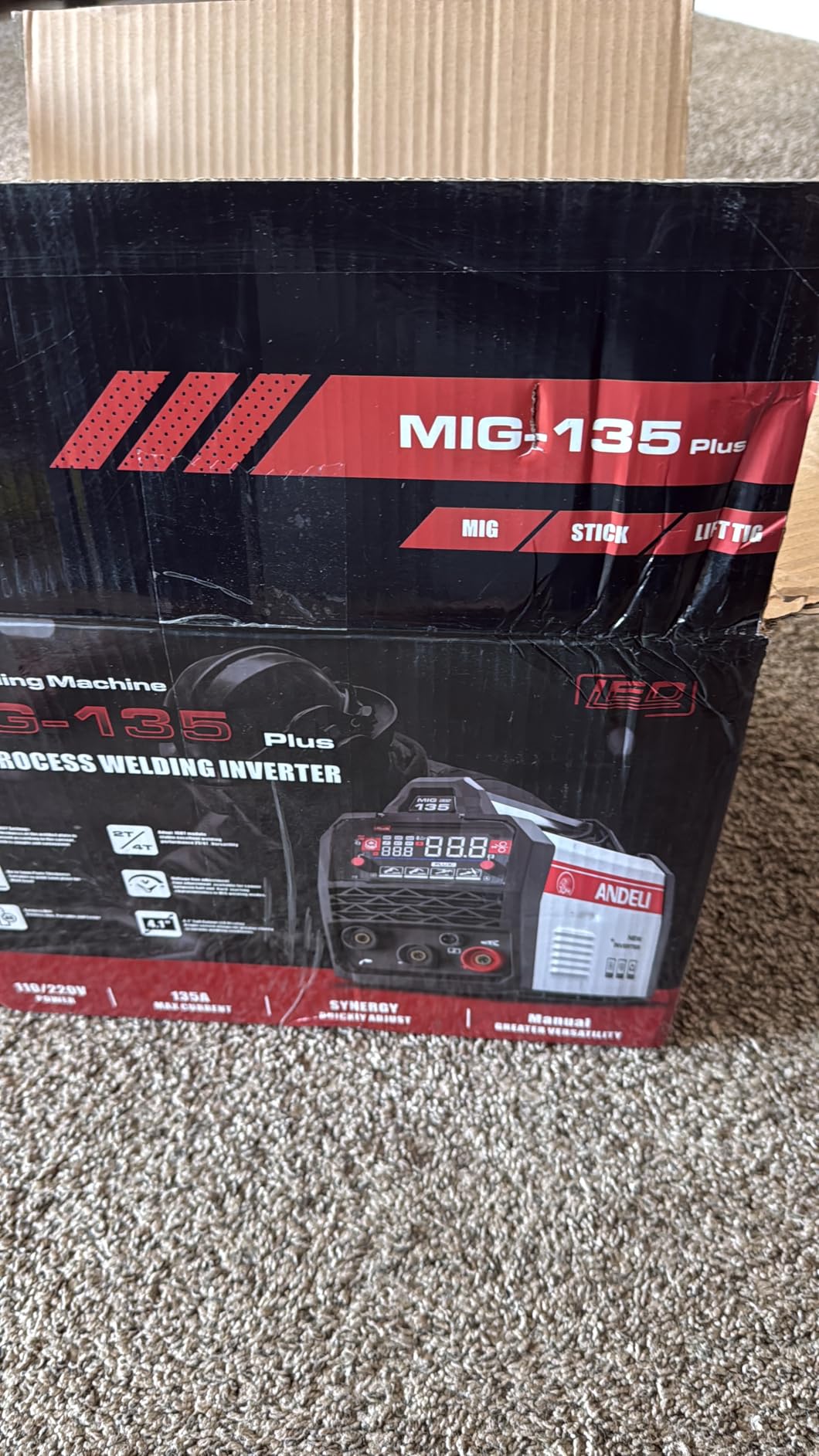

5. ANDELI 135A Pulse 4-in-1 – Best Control on Thin Metal
ANDELI 110V/220V MIG Welder 135A ，PULSE Flux Core/Lift TIG/Stick 4-in-1
Pulse flux core mode
110V/220V input
Adjustable inductance
4.1 inch LED
Pros
- Pulse mode gives a smoother arc and finer beads on thin metal
- Adjustable inductance to tune stability and cut spatter
- Dual 110V/220V with .030/.035/.040 wire support
- Synergic plus manual control across four processes
- 9.04 lb body with a carrying handle
Cons
- Included welding helmet is worth replacing
- Lift TIG torch sold separately
- Some units lack the advertised pulse mode
Pulse welding is the feature that separates this one from the other budget machines here. Instead of a steady arc, pulse cycles the current rapidly, which produces a narrower, more uniform bead and drops the heat into the panel less aggressively.
Users report it handles floor pans and body sheet metal well, and a few note it is almost overpowered for very thin panels. That is a solvable problem and still a better starting point than a machine that bottoms out too high.
The adjustable inductance control is the other quiet winner. It smooths arc behaviour and cuts spatter, and spatter on a new door skin is spatter you have to grind off before primer.
Four processes are covered, pulse flux core MIG, gasless MIG, lift TIG, and stick, with dual 110V and 220V input. The 4.1 inch LED display sits under a clear protective cover, which matters more than it sounds in a dusty garage.
Pulse mode is the closest thing to heat control in this price range
Most single-knob machines give you one lever for heat. Pulse gives the machine a way to deposit filler without sustaining a full-power arc, so 20 and 24 gauge work becomes predictable rather than experimental.
For anyone who has already burned a hole in a panel and is now nervous about thin steel, that predictability is worth more than raw amperage.
Check that your machine actually has pulse
A share of the machines at this specification ship without the advertised pulse function. Confirm it works on the one you receive before you rely on it for a panel.
The included helmet is poor and worth replacing, and the lift TIG torch is a separate purchase. The synergic display also reports wire feed in amps rather than inches per minute, which is confusing the first time you set up.

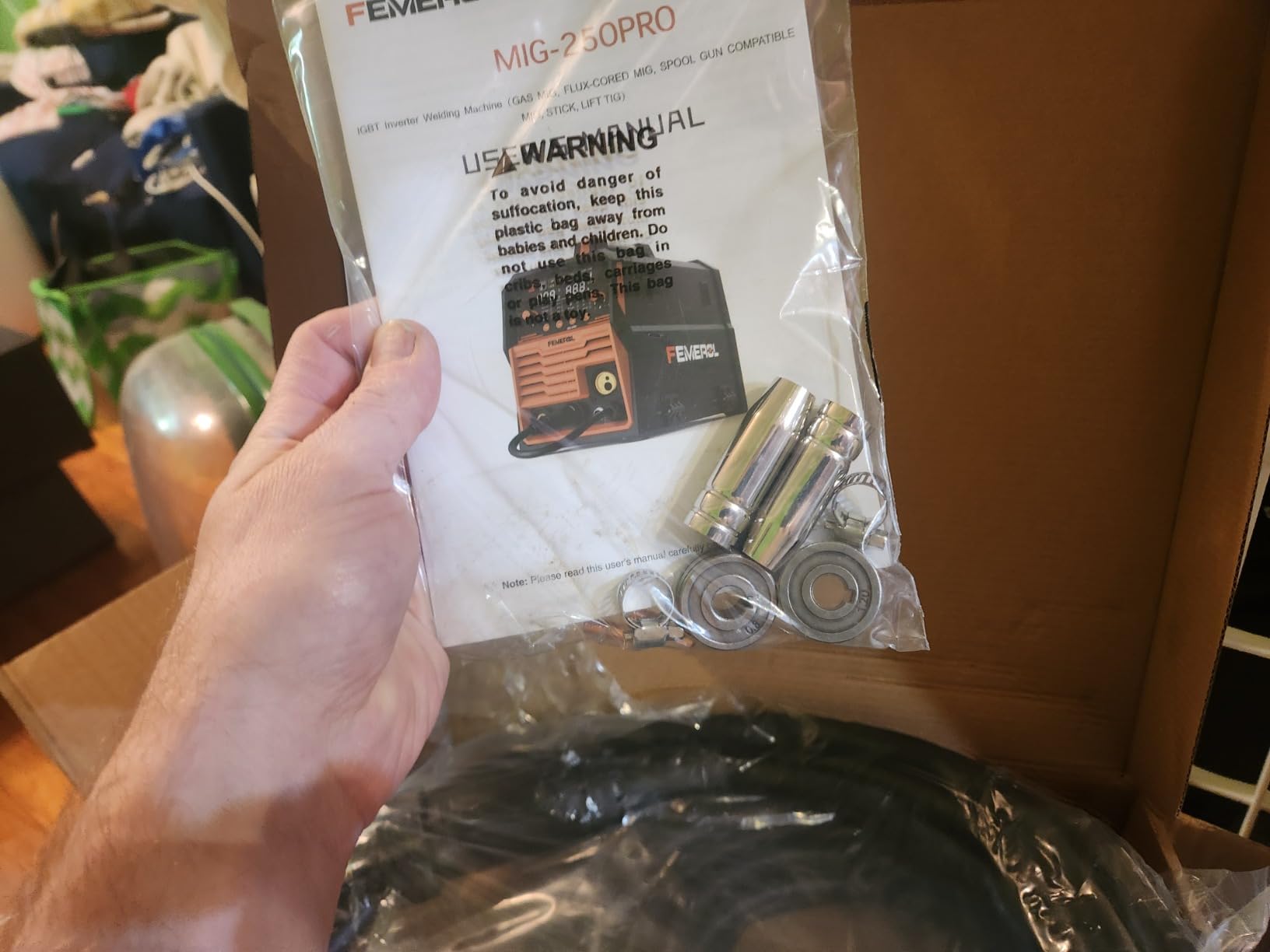

6. FEMEROL 250A 6-in-1 – Heavy Output With Spot Welding
FEMEROL 250A MIG Welder,6 in 1 Gas MIG/Gasless Flux Core/Stick/Lift TIG/Spot Welding/Spool Gun Compatible Aluminum Welding Machine Large LED Display 110V/220V Multi Process Welder
250A at 60 percent duty
Welds .024 inch to 1/2 inch
Spot weld mode
Spool gun ready
Pros
- Spot weld mode joins 24 gauge consistently without burn-through
- Welds from .024 inch to 1/2 inch steel
- 250A at 60 percent duty cycle across MIG
- stick and TIG
- Spool gun ready for aluminum
- Generous 9.5 ft cables
Cons
- Cooling fan runs constantly and is loud
- Supplied 120V plug and cord are undersized
- Contact tips can be out of tolerance
- Ground cable and torch are light aluminum core
The FEMEROL is the reach of this list. Six processes including spot welding, 250 amps at a 60 percent duty cycle, and a stated weld range from 0.024 inch to 1/2 inch steel make it a genuine shop tool rather than a hobby box.
Its spot weld mode is the underrated part for body work. Owners report it joining 24 gauge consistently without burn-through, which is exactly the job that makes hand plug welding a quarter panel to a flange so slow.
It also welds aluminum using the included teflon liner, and it is spool gun ready if you want to push bigger aluminum jobs. The 9.5 ft torch, ground, and stick cables are longer than most machines at this level, which is a real advantage on a stretched panel.
Experienced hobby and shop welders find the output and process range genuinely good value, and report it holding up through heavy multi-pass work. The complaints are about accessories and documentation, not arc performance.
Spot welding plus long cables solves a specific body shop problem
Plug welds through a flange are the difference between a ten-minute repair and a two-hour one. Having a spot mode in the same cabinet as your MIG means you do not drag a second machine to the vehicle.
The long cable set also means fewer awkward routing compromises when the panel is on the bench and the ground has to reach the far end of a door shell.
The accessories are the weak point
The cooling fan runs constantly and is loud, and the supplied 120V plug and cord are undersized for the rated amperage. Replace the plug and cord before you run it hard on 120V.
Included 0.8 mm contact tips can be out of tolerance, which causes wire binding and bird-nesting. The ground cable and torch are light aluminium core, and the gas outlet uses a barbed rather than threaded fitting. Plan on buying a proper tip set and cables.

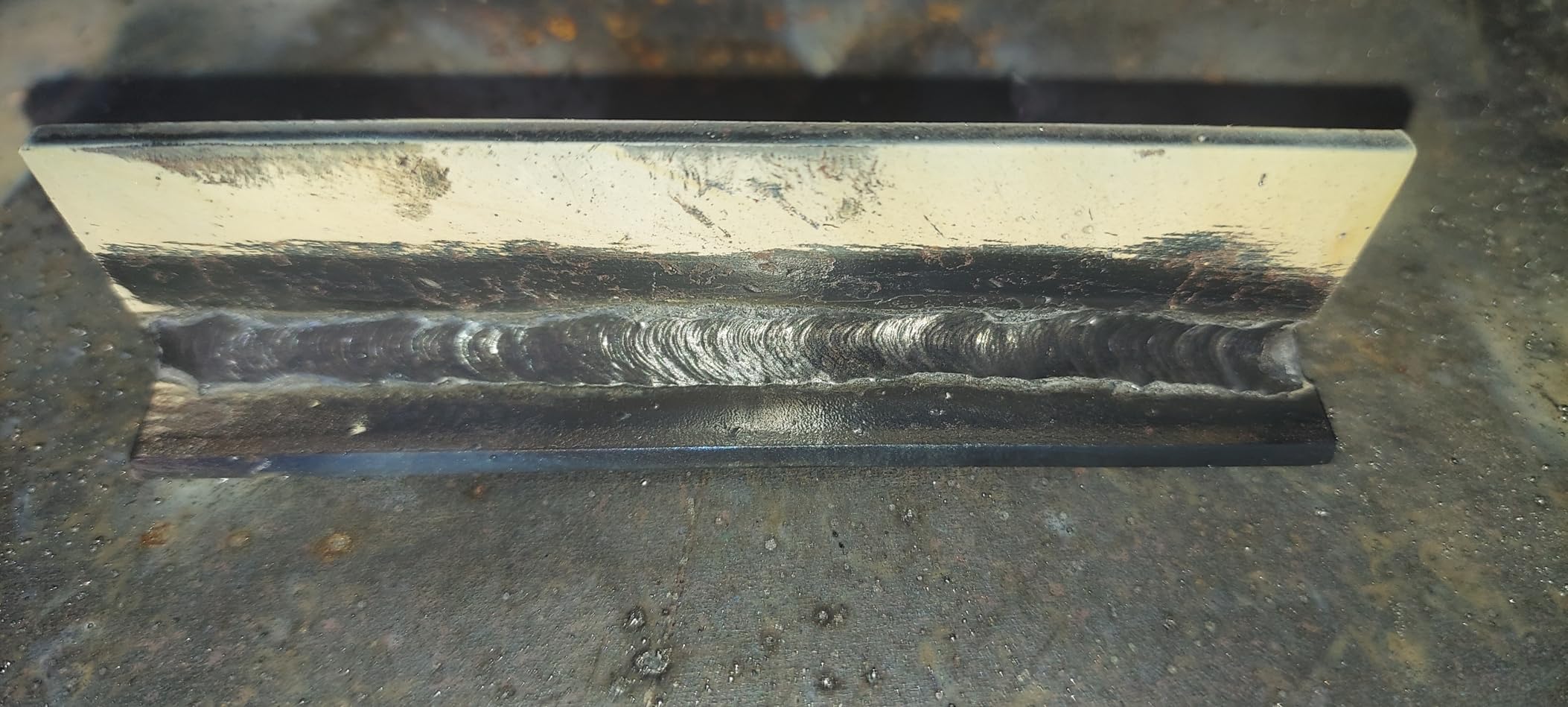

7. PrimeWeld MIG180 180A – The Production and Spool Gun Pick
PrimeWeld MIG180 Mig Welder, 180 Amp Wire Feed Welding Machine with Dual Voltage 220v, 110v
180A wire feed
Dual 120/240V
Spool gun included
Tweco consumables
Pros
- Spool gun included for aluminum without feeding problems
- GMAW
- flux core and DC stick in one cabinet
- Dual 120/240V with MIG and flux core drive rollers
- Uses standard Tweco consumables
- US-based parts and customer support
Cons
- 55 lb unit is heavy for a garage
- Optional 200A torch recommended for 5/16 inch and thicker
This is the highest rated machine in the roundup, and the reason is simple: it includes the parts you would otherwise buy. A dedicated spool gun, drive rollers for both solid and flux core wire, and standard Tweco consumables are in the box.

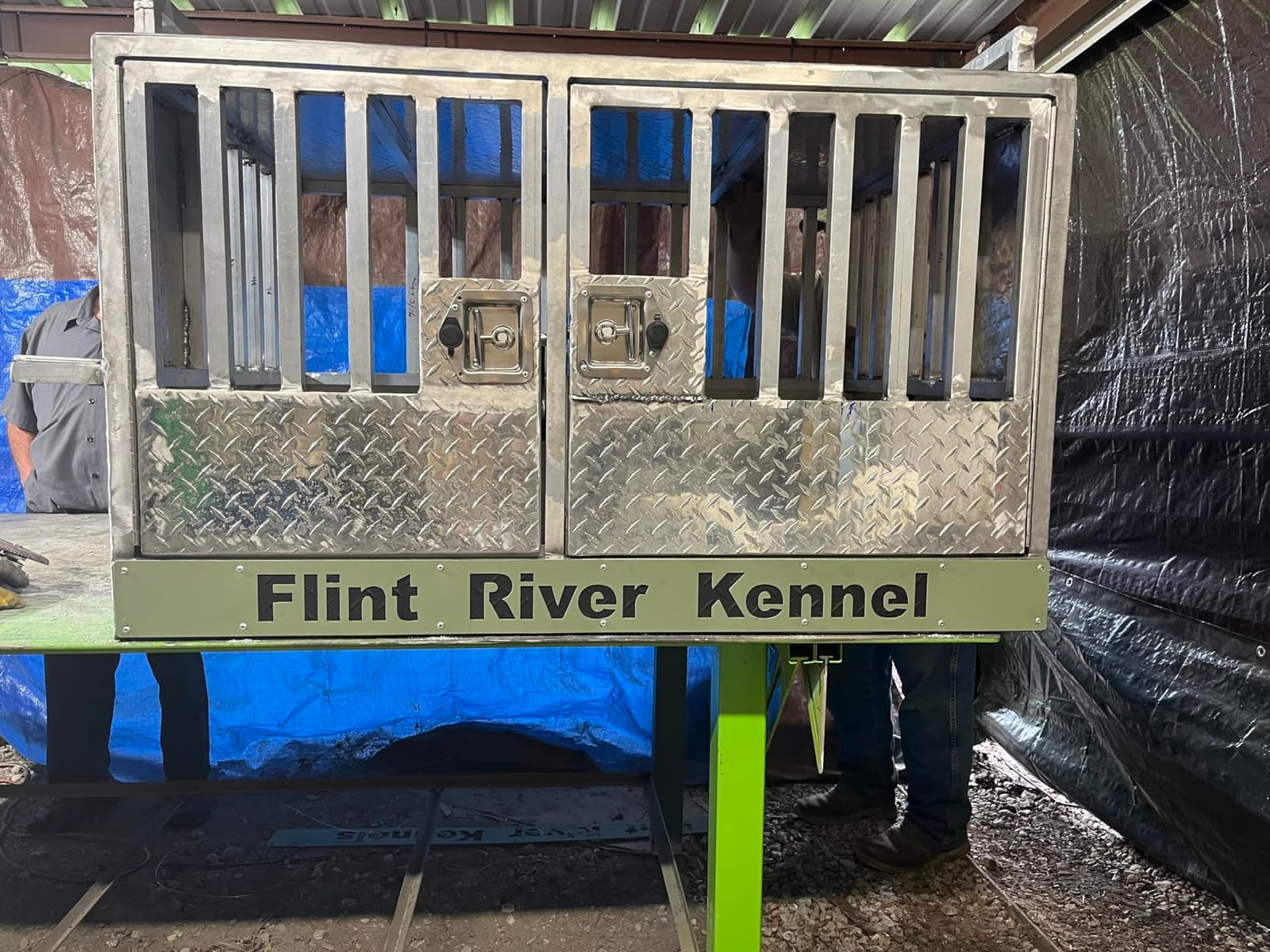

Owners running welding shops report consistent beads, quick gun changes, and successful spool gun aluminum work, with several saying they replaced a far more expensive machine with it.
The spool gun is the headline for body work. Feeding 0.035 and 0.040 inch aluminum through a standard gun pushes it and bird-nests; a spool gun feeds it smoothly, which is why shops that do valance trim, radiator supports, or alloy patch panels want one.
Dual 120V and 240V input means the same machine covers a tack on a hood and a subframe repair. Drive rollers for both wire types ship in the box, so nothing needs ordering before the first job.
Standard consumables and US support lower long-run friction
Tweco consumables are stocked everywhere, so you are never waiting on a shipment to replace a contact tip. For a machine expected to run for a decade, that matters more than the feature list.
US-based parts and customer support also shorten the path to a replacement drive roller or a control board if one ever fails.
It is built like shop equipment, not garage equipment
At 55 lb this is not a machine you lift one-handed to a car. Plan on a cart, and on mounting it near a fixed power outlet.
Owners note that material 5/16 inch and thicker calls for the optional 200 amp torch rather than the one supplied. That is a limitation only if you are doing heavy structural work, not panel work.

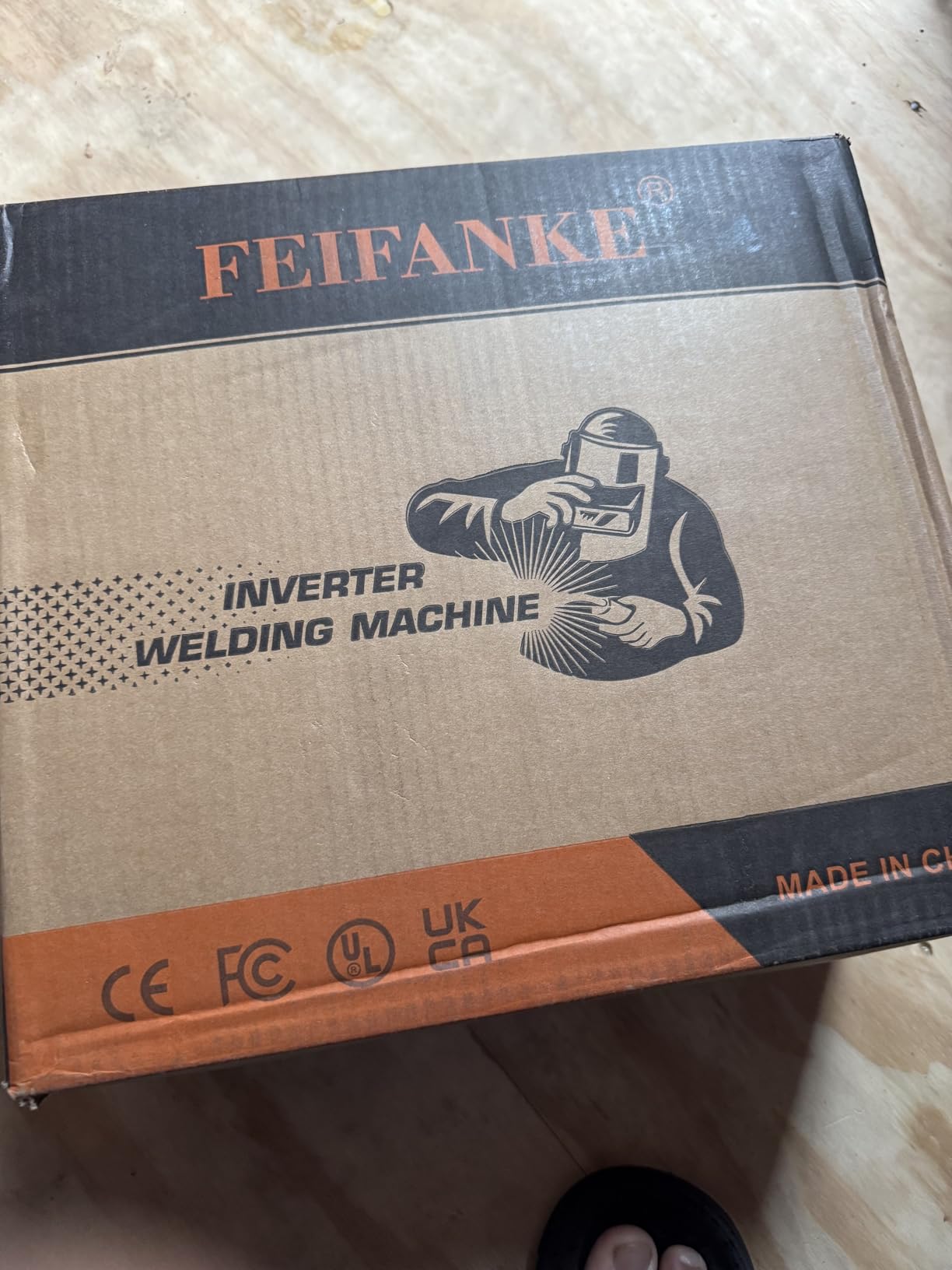

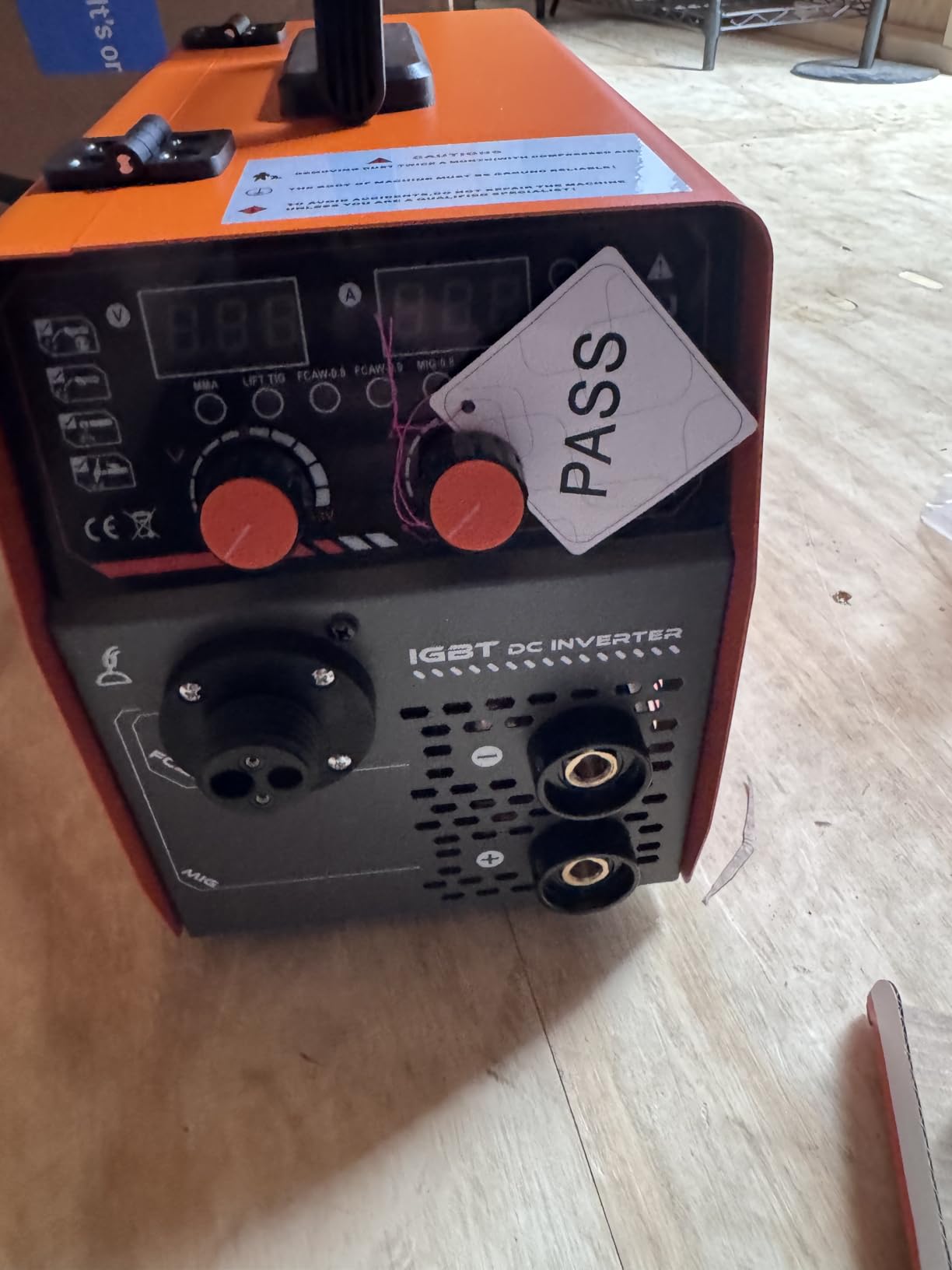

8. FEIFANKE 250A 6-in-1 – Budget Pulse MIG With Aluminum Modes
FEIFANKE 250A Aluminum MIG Welder 110V/220V, 6 In 1 Flux Core MIG Welder
250A output
Pulse MIG with ALSi and ALMg modes
Dual voltage
HD digital panel
Pros
- Pulse MIG with smart aluminum and thin metal modes
- Synergic setting plus full manual mode
- HD panel shows live voltage and current with 2T/4T toggle
- Two 10 ft torches and three wire spools included
- Reported working well on project car floor pans and exhaust tubing
Cons
- At 34 lb it needs a cart to move
- Included electrode rods strike poorly
- One report of no wire feed in gas MIG mode
The FEIFANKE is the widest accessory package in the roundup. Two 10 ft torches, three spools covering solid, flux core, and aluminum wire, a graphite liner, five contact tips, four nozzles, three drive rollers, ground clamp, electrode holder, gas hose, and a dual voltage cord.
What makes it interesting for panels is the pulse MIG with smart ALSi and ALMg modes. Those are aluminum programs, but the same pulse control also gives you the finer, cooler bead you want on thin steel.
Beginners and hobby mechanics praise the complete kit and the easy setup, with several complete auto projects reported. Owners working on project car floor pans and exhaust tubing give it good marks for the effort it puts in for the money.
The HD digital panel shows real-time voltage and current, includes a 2T and 4T toggle for consistent per-side settings, and has a wire inching button that makes threading the liner far less annoying than it sounds.
Pulse aluminum modes without a separate machine
Most machines at this output either do aluminum badly or require a separate spool gun purchase. This one drives aluminum through a standard torch using a graphite liner, which makes alloy patch work and trim repair approachable.
The same pulse technology is what keeps a 20 gauge seam from sagging, so the feature is not purely an aluminum story.
Weight and a few quality control details
At 34 lb it needs a wheeled cart to move around a shop. It is a floor-standing machine, not a carry-to-the-car machine.
One reviewer reported no wire feed in gas MIG mode on a medium-size machine, which is a fault rather than a design limit, so confirm gas mode works when yours arrives. Reliability with aluminum and very thin material also varies in practice, and the included electrode rods are hard to strike and burn quickly.

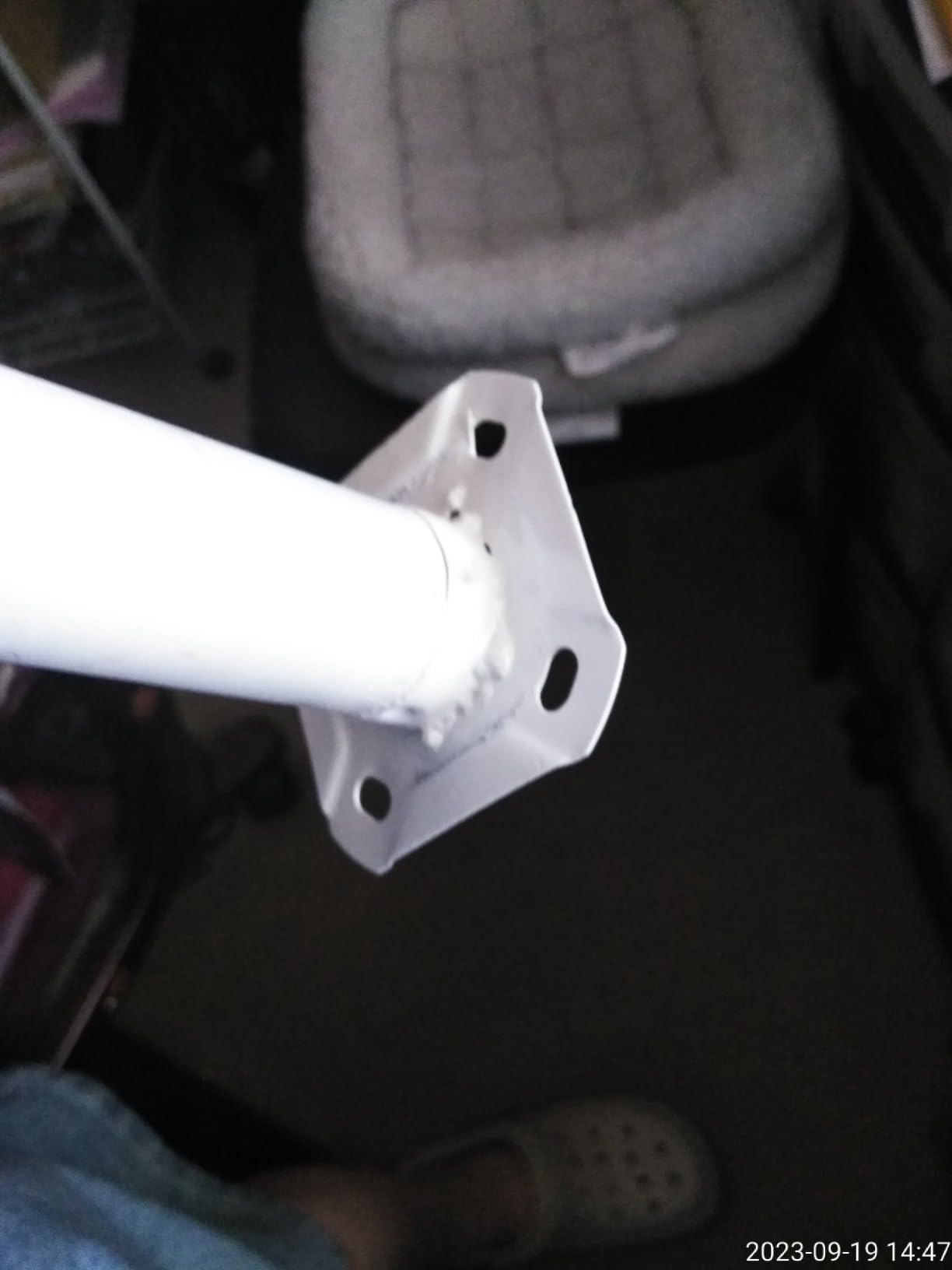

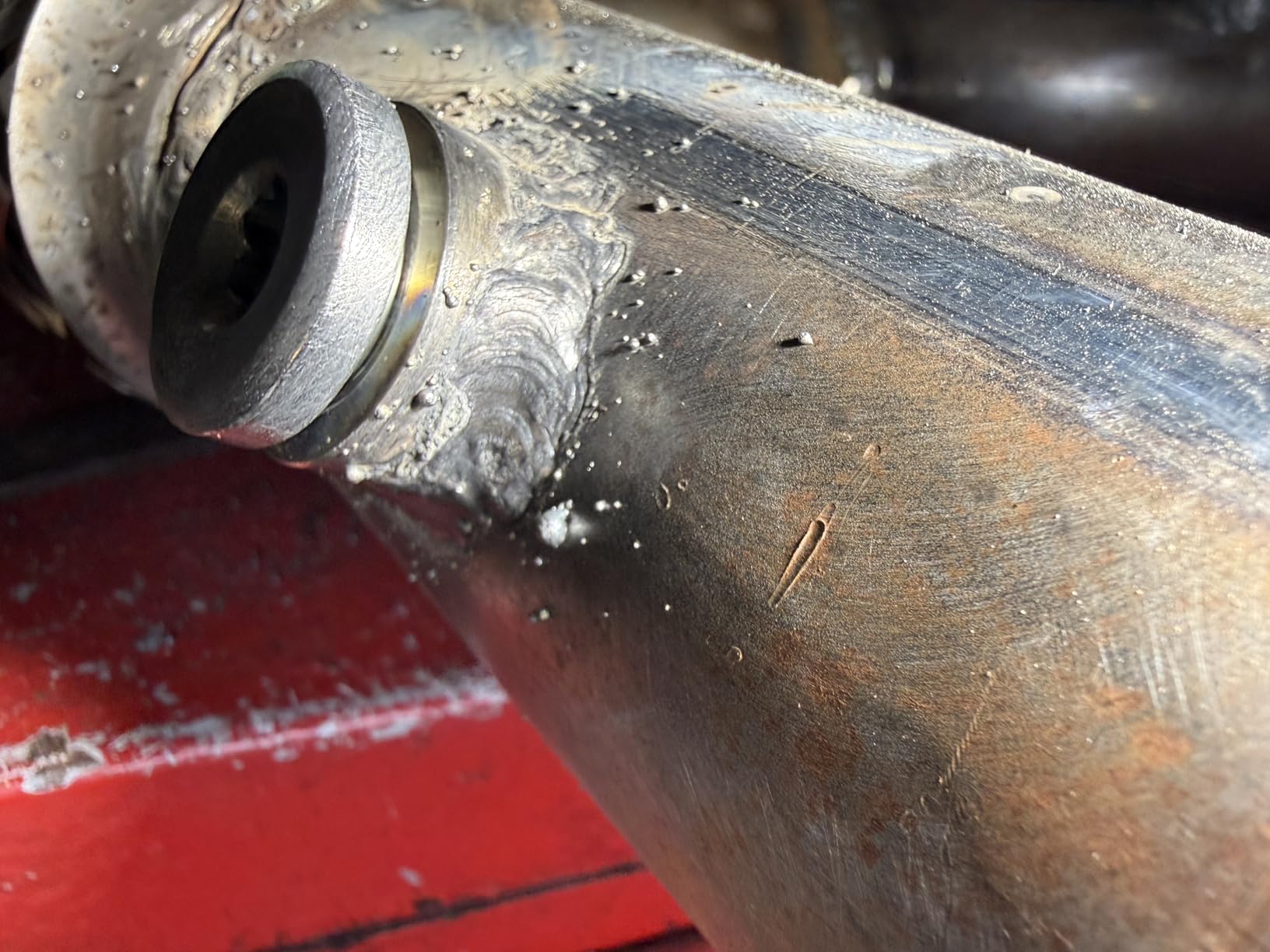

9. YESWELDER 135A 3-in-1 – The Simplest Gasless Setup
YESWELDER 135A MIG Welder, 110V Flux Core Gasless MIG/Lift TIG/Stick 3-in-1
135A on 110V
Synergic with voltage trim
LED current readout
Overheat protection
Pros
- Gasless flux core
- stick and lift TIG with .030 and .035 wire included
- Synergic control with -3V to +3V manual fine-tune
- Oversized LED shows real-time current
- Portable body with a carrying handle
- Over-current
- overload and overheat protection
Cons
- Lift TIG torch must be bought separately
- 110V single voltage only
- Household circuits limit sustained work on thicker material
The YESWELDER is the most reviewed machine in this roundup by a wide margin, and it is the one most people will meet first. It runs gasless flux core, stick, and lift TIG from a single 110V outlet with no bottles, regulators, or fittings involved.
That simplicity has a real cost for panel work. Gasless flux core carries its own flux and runs hotter and dirtier than a gas-shielded solid wire bead, so the same settings that look fine on a thicker patch will sink through a bare 20 gauge skin.
Within its limits it does the small stuff well. Reviewers emphasise simple setup, smooth flux core feed, and lightweight portability, with a 76 percent five-star share across more than 2,900 ratings.
The -3V to +3V trim on the synergic control is the feature that lets you back the heat off. The oversized LED readout also makes it far easier to dial in a repeatable setting, which is what you need when the same panel has to match on both doors.
Best choice when gas is not practical
Some jobs are simply not worth setting a bottle for. Rust patch work, exhaust, a bracket on a frame rail, or learning torch handling before committing to a gas setup are all reasonable reasons to start here.
The 135A output handles mild steel to 3/32 inch, and the built-in over-current, overload, and overheat protection gives some confidence during long sessions.
Not the machine to finish a door skin with
Gasless flux core is the wrong default on bare panel steel, and no amount of setting adjustment changes the fact that it puts more heat into the joint.
It is also 110V only, so sustained work on thicker material is limited by the household circuit, and the lift TIG torch has to be purchased separately if you want that process.
10. BESTMIG 135A 3-in-1 – The All-In-One Starter Package
BESTMIG 135A MIG Welder – 3-in-1 Flux Core Welder, MIG/Lift TIG/Stick Welding Machine – Portable IGBT Inverter – 110V with Welding Helmets and Gloves (Red Black, MIG 135A Welder)
135A on 110V
Digital auto parameter set
Full-color LED
Helmet and gloves
Pros
- Helmet
- gloves
- ground clamp
- electrode holder and wire all included
- Digital parameter set derived from the current setting
- True 135A output across MIG
- lift TIG and stick
- Full-color LED shows live welding parameters
- 10.71 lb portable body
Cons
- 110V only
- which caps output
- TIG torch is not included despite lift TIG being listed
The BESTMIG solves a practical first-week problem: you have no helmet, no gloves, and no wire. The package includes an auto-darkening welding helmet, leather gloves, ground clamp, electrode holder, torch, and flux core wire, so you can start on something other than a car body immediately.
First-time buyers rate the package highly, especially the safety gear, and report stable, low-spatter beads once the digital settings are matched to material thickness.
The digital control is the interesting part. It auto-adjusts voltage and feed speed from the current setting you choose, so the machine proposes a starting point and you refine it. The full-color LED shows live parameters, which is genuinely helpful while you are learning what each knob does.
It welds material up to 1/8 inch thick and runs 0.030 to 0.040 inch gasless wire on stainless and carbon steel. At 10.71 lb it moves around a garage easily.
It removes every reason to delay the first weld
Protective gear is the most common reason a new welder never gets used. Having a helmet and gloves in the box means the machine comes out of the corner on day one rather than sitting there for a year.
The auto-set behaviour also lowers the learning curve, because you are adjusting a proposed value rather than setting voltage and wire feed from cold.
Flux core only, and no TIG torch
Like the YESWELDER, this is a gasless machine. It will not run gas-shielded solid wire, so it carries the same caution on bare panel steel. A spot-weld or flux-core mode is what it is built around.
110V only caps sustained output, and the lift TIG process is listed without a TIG torch in the box, so plan that as an extra purchase if you want it.
How to Choose a MIG Welder for Auto Body Work
Match the machine to your panel gauge
Automotive panels sit in a narrow gauge band, and your amperage has to sit in a narrow band to match. A rough map for solid wire with 75/25 gas:
24 gauge (about 0.5 mm) – typical inner door skins, panel edges: 20 to 30 amps, shortest wire stickout, slowest travel.
22 gauge (about 0.8 mm) – some hatches and later-model skins: 30 to 40 amps.
20 gauge (about 1.0 mm) – the commonest body panel thickness, including the Datsun panels owners mention on ratsun: 40 to 55 amps.
18 gauge (about 1.2 mm) – patch panels, brackets, some door frames: 60 to 80 amps.
Frame rail, subframe, 1/8 inch and up – this is where a 220V machine starts to earn its place.
If your machine cannot get below about 30 amps, panels will melt before you settle on a setting. That floor matters more than the top of the amperage range.
Solid wire and 75/25 argon/CO2, not gasless, on bare panels
Run 0.023 inch E70S-6 solid wire with a 75/25 argon and CO2 mix for panel work. Real owners confirm the difference: on ratsun, a Datsun owner reports 0.023 makes a noticeable improvement over the 0.025 wire the welder shipped with.
Gasless flux-cored wire is genuinely useful for rusty steel, exhaust, and structural work, and it is convenient. It is not the right default for a bare door skin, because it deposits more heat and leaves more residue to clean before primer. Weldingweb and garagejournal both point to solid wire and 75/25 as the bodywork default.
You will also need contact tips matched to your wire size, a liner, and a flowmeter. Buying a regulator and a small cylinder of 75/25 is a normal part of the first purchase, not an extra.
110V for the garage, 220V/240V for the shop
A dedicated 120V household circuit is genuinely enough for thin panels. Small 110V machines suit thin steel work well, and if panels are your only goal, that is a defensible place to start.
Move to 220V or 240V when you want frame rails, a roll cage, thick patch panels, or production volume. On weldingweb, 110V machines get called ideal for thin auto body steel, while on Reddit r/Welding the advice for body shop duty is a 240V Lincoln or Miller. Both are right, for different work.
A 15 amp circuit will trip or nuisance-trip on a 110V machine at higher amperage. An auto-transformer that steps 20 amps down to 15 can help, but planning a 20 amp circuit is the better answer.
Duty cycle matters because panel work is stop-start
Duty cycle is the percentage of a 10 minute period a machine can weld at its rated amperage. Panel work is a rhythm of short tacks with long pauses while you line up the next one, so you rarely hit the number in a spec sheet.
What actually matters is whether the machine has thermal management, meaning a cooling fan and an overheat cutout, so that repeated tacking does not cook the power stage. Owners on r/projectcar describe budget machines as a practical first step before moving to a shop-grade 240V unit, and heat control on a single-knob machine is a common source of frustration.
The FEMEROL states 60 percent duty cycle at 250 amps, and most machines in this roundup sit in a similar band. Ignore the headline number and check the protection features instead.
Torch, liner, contact tips and work lead length
A short work lead is listed as a con by owners of several machines here, and it is worth treating as a real selection criterion rather than a footnote. On a stretched or hinged panel, a short lead forces awkward routing that changes your torch angle, and torch angle changes bead shape.
Plan on a 10 foot torch, a ground clamp that can reach the far end of a door shell, and a way to keep the clamp on clean, unpainted steel. If a machine ships with a short lead, replacing it is cheap and it changes the work more than any other single purchase.
Keep a spare set of contact tips and a liner. A worn or oversized tip causes stubbing and bird-nesting that beginners usually blame on the machine.
Cable quality, grounding and fume extraction
Check whether the work leads are pure copper or copper-clad aluminium. Copper-clad aluminium cable is lighter and cheaper and runs warm under sustained load, which is why the FEMEROL’s aluminium core ground cable shows up as a recurring complaint. Pure copper costs more and behaves better.
On a vehicle, ground to a clean bare metal point on the chassis, not to a painted or rusted surface. Cars are often battery negative, which is another reason to isolate the battery before welding on a modern vehicle with electronics.
Fume extraction matters more indoors than most people expect. Welding galvanised or coated steel produces fumes you do not want in a closed garage, so move a fan or extraction unit so airflow carries fumes away from your face. Treating the walls and ceiling of a garage you also use as a listening space helps with noise as well as dust; our acoustic panel guide covers the materials that work for that, and the home studio panel roundup goes into placement.
One honest counterpoint to this whole roundup: resistance spot welding is faster and more consistent for bracket attachment, and TIG gives a cleaner, narrower bead on high quality show panels. MIG remains the standard process in real body shops because it is fast, forgiving, and versatile, which is why every machine here is a MIG machine.
Frequently Asked Questions
What is the best size wire for MIG welding an auto body?
Use 0.023 inch solid E70S-6 wire for 20 to 24 gauge automotive panels with 75/25 argon and CO2. Step up to 0.030 inch for patch panels and 18 gauge steel, and 0.035 inch for frame sections and heavier bracket work. Real owners notice the difference: a Datsun builder reports 0.023 gives a noticeably better bead than the 0.025 wire his welder shipped with.
Can you MIG weld auto body panels?
Yes. MIG is the standard process in real body shops, not TIG. What matters is solid wire with 75/25 argon and CO2 shielding gas, a machine that reaches a stable 25 to 30 amps, and fine voltage adjustment so you can lower heat without losing the arc. Gasless flux-cored wire runs hot and is the wrong choice for bare panel steel.
What type of welding is used for auto body?
Gas-shielded MIG is the standard, because it is fast and handles brackets, panels, and frame in one process. TIG gives a narrower, cleaner bead for high quality show panels and aluminum, at much lower speed. Resistance spot welding is fastest and most consistent for attaching brackets, but it is not practical outside a factory-style setup.
What kind of welder should I get for automotive work?
For a home garage, a 110V or 115V machine that reaches 25 to 30 amps with fine voltage control covers panels well. For frame, roll cage, or production volume, move to a 220V or 240V machine. On professional forums, Miller, Lincoln, and Hobart are the trusted names, so a 120V Lincoln or Miller entry machine is a safe first step.
Do I need a 220V welder for car body work?
Not for thin panels alone. A 110V machine handles 20 to 24 gauge sheet metal on a dedicated 120V circuit, and many small 110V MIGs are praised for thin steel work. You do want 220V or 240V for frame rails, roll cages, thick patch panels, and production volume, or if a 15 amp circuit cannot supply the current.
What shielding gas and consumables do I need for MIG car panels?
Buy a 75/25 argon and CO2 mix, a flowmeter, 0.023 inch E70S-6 solid wire, contact tips matched to the wire size, and a spare liner. Avoid gasless flux core on bare panels because it runs too hot and leaves more residue. Most budget machines ship without a regulator or chart, so budget for both on day one.
Final Verdict
For panels in a home garage, the ARCCAPTAIN MIG200 is the best MIG welder for auto body work in this roundup, because it runs solid wire at low amperage, trims voltage in fine steps, and will grow into 220V work when you are ready. If you want a name a body shop already trusts and you will carry the machine to the car, the Lincoln Electric 90i FC is the portable choice, with the understanding that it is a flux-cored 120V machine.
Whichever you pick, use the gauge map above to set your starting amperage, run 0.023 inch solid wire with 75/25 argon and CO2, and keep your tack spacing even so the panel does not warp. This roundup was assembled and updated for 2026, and the picks reflect the 2026 state of the market.
