The first time I deadlifted heavy in my garage, I did it on bare concrete. A few months later a chunk of the slab near the post was cracked and chipped, and every rep rang through the ceiling of the room below. That experience is why this list exists. I have since laid rubber in two garage gyms, pulled it all up once, and reinstalled it after moving.
Finding the best rubber gym flooring for garage gyms is harder than it looks, because the category hides three completely different products under one name. There are flat-lay horse stall mats, interlocking rubber tiles, and continuous rubber rolls. They install differently, smell differently, and cost very different amounts per square foot, yet almost every listing puts them side by side as if they were interchangeable.
This roundup covers all three formats across 10 picks, scored on drop protection, install difficulty, odor and value. I also cover the question forums answer most often, which is how thick the rubber actually needs to be, and the one nobody answers clearly, which is what happens to moisture under a sealed floor in an unheated garage. Updated for 2026.
If your problem is noise through a shared wall rather than the floor itself, start with our [best speakers for a home gym](https://www.theclassicalshop.net/best-speakers-for-a-home-gym/) and [best gym earbuds](https://www.theclassicalshop.net/best-gym-earbuds/) picks, then come back here for the slab.
Table of Contents
Top 3 Best Rubber Flooring Picks for a Garage Gym (October 2026)
American Floor Mats Fit-Lock 3/8 in Tiles
- 3/8 inch interlocking tile
- 4 sq ft per tile
- No adhesive needed
Rubber-Cal Recycled 1/4 in Mats
- 1/4 inch thick
- 48 x 24 inch panel
- 100 percent recycled rubber
American Floor Mats 3/8 in Roll
- 3/8 inch vulcanized rubber
- 4 x 5 ft section
- Non-porous surface
All 10 Rubber Gym Flooring Picks Compared (October 2026)
How Thick Should Rubber Gym Flooring Be? Three Tiers
Thickness is the single decision that matters most, and the honest answer depends on what you do on the floor. Match the tier to the heaviest thing that will touch it.
3/4 inch (19mm) – the community standard for any barbell work, deadlifts or frequent drops. It is also the heaviest and most expensive tier, and a full 3/4 inch layer under a whole garage is a lot of material to move.
1/2 inch (12mm) – enough for a garage gym lifting around 400 pounds on a rack and for dumbbell work, without the mass of a full stall mat. Is 1/2 inch thick rubber gym flooring thick enough for garage gyms? For most home setups below 500 pounds, yes, as long as you are not dropping loaded bars onto it.
3/8 inch (10mm) – the practical default for a mixed-use floor covering machines, benches and general training. Is 3/8 inch gym flooring thick enough? Yes for equipment protection and noise control. It is not a drop surface, so keep deadlifts on a platform or a thicker zone.
Below those tiers you are looking at underlay-grade material in the 3 mm to 8 mm range. That is equipment protection and sound dampening, not impact absorption for a loaded bar. Several picks on this list fall in that band and we label them honestly.

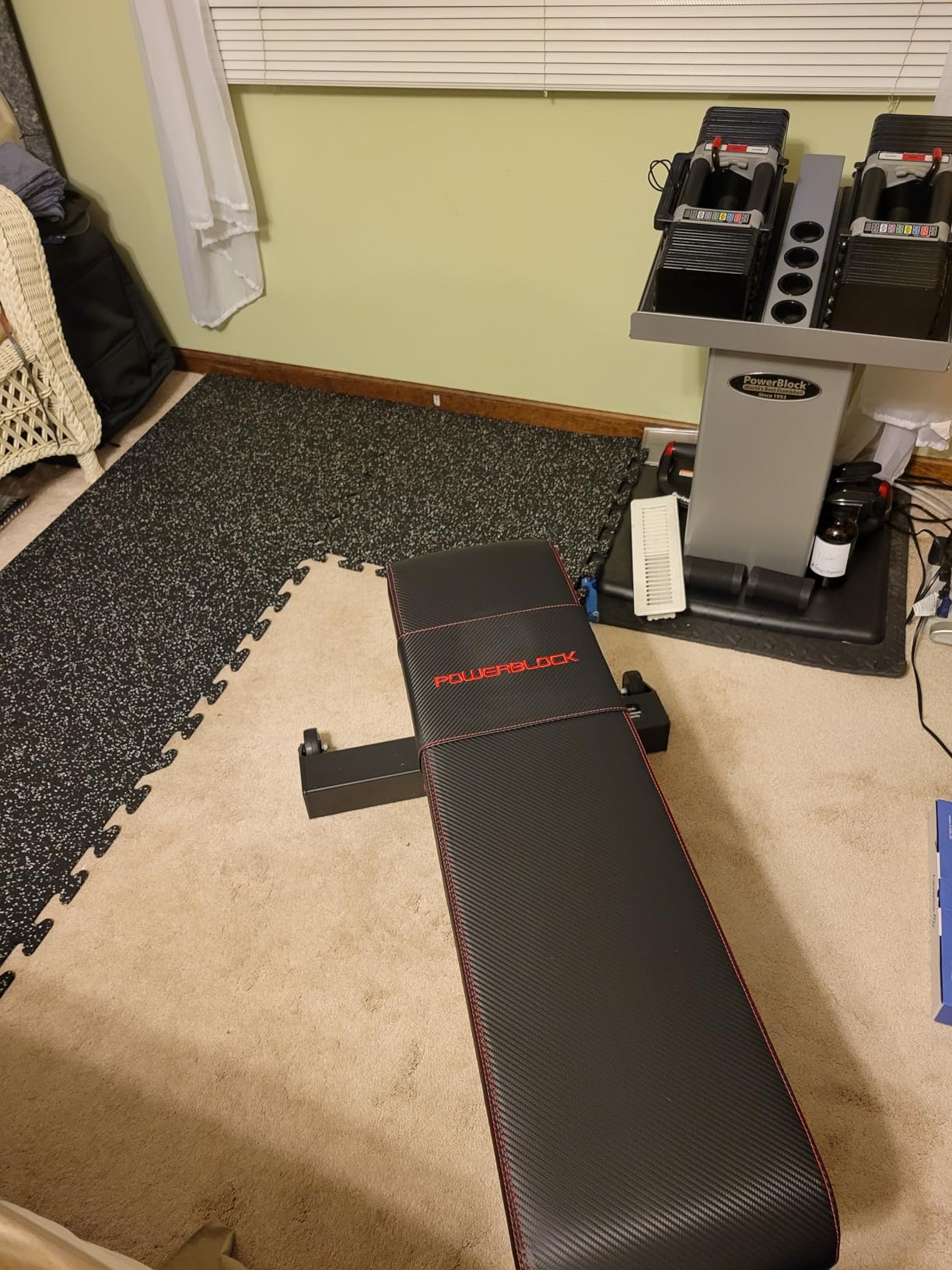

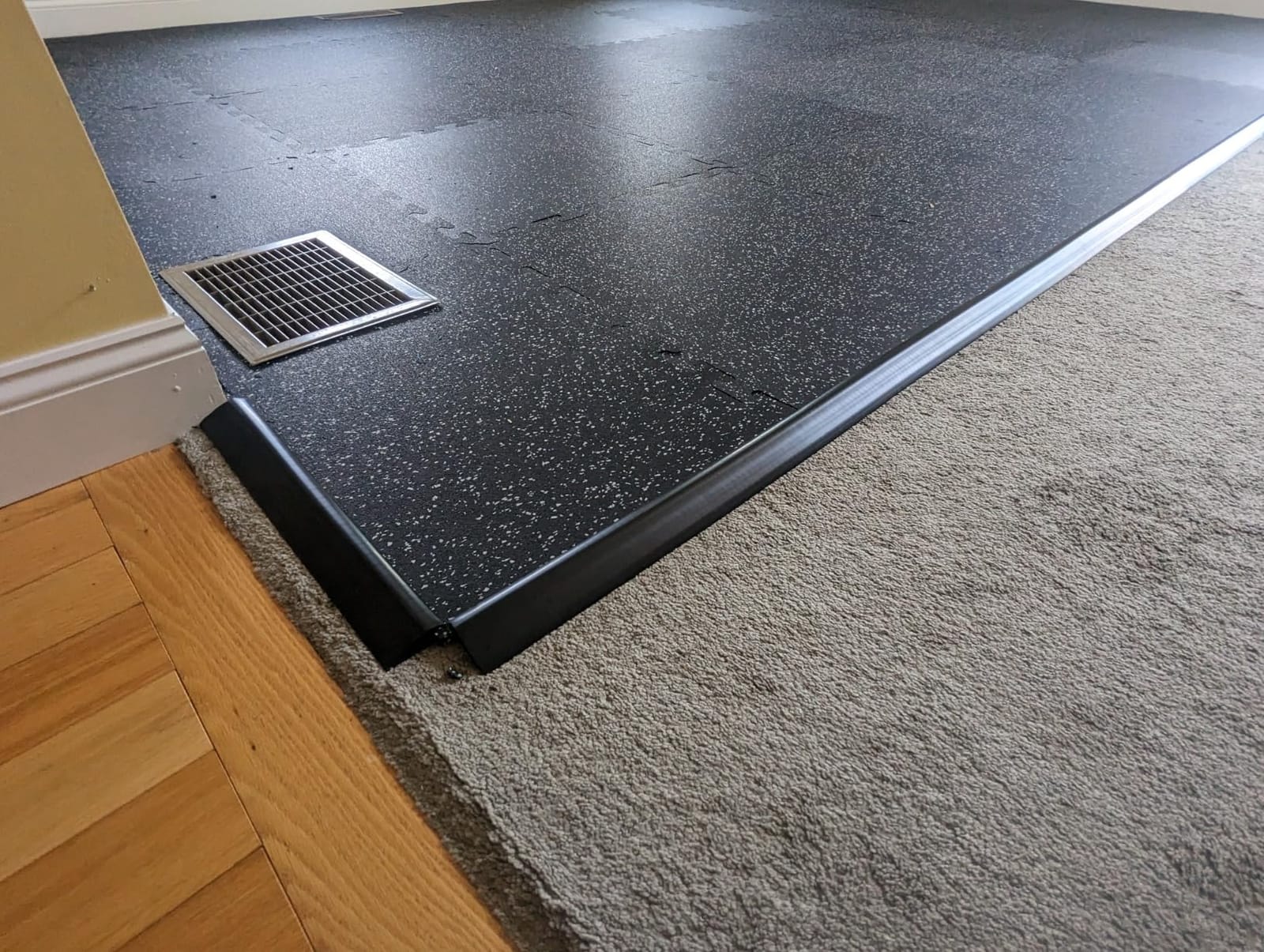

1. American Floor Mats Fit-Lock 3/8 in Interlocking Tiles – Best Overall
American Floor Mats Fit-Lock 3/8 Inch Heavy Duty Rubber Flooring – Interlocking Rubber Tiles (24″ x 24″ Tile) Solid Black 4′ x 4′ Set (4 Tiles Total) – Exercise Mats, Home Gym Sets
3/8 inch thick
24 x 24 inch tile
4 sq ft per tile
About 8 lbs per tile
PVC and phthalate free
Pros
- Dense and stiff with almost no give
- Closest match to a commercial gym floor
- Fit-Lock seam locks tight with no adhesive
- Replace a single damaged tile instead of the whole floor
- Owners report 6+ years of service
Cons
- Heavy once laid
- Only 2 x 2 ft geometry so odd rooms leave cuts
- Semi-permanent rather than portable
- Noticeable rubber odor for some buyers
This is the interlocking rubber tile I keep coming back to for a garage that gets real use. At 3/8 inch and roughly 8 pounds per tile it is dense and stiff, which sounds odd for flooring but is exactly what you want: the surface barely deflects, so a plate landing on it does not ripple the whole floor or walk the seams apart.
The Fit-Lock edge is the part that separates it from cheaper puzzle tiles. The tabs bite down and the joint reads as a hairline rather than a gap, so a 16 x 20 foot area looks like one surface. I used a fresh blade and a straightedge to trim around the garage door track and the floor drain, and the cuts stayed clean with no crumbling.
What you give up is flexibility. These tiles are heavy and once they are down you will not want to move them, so plan the layout before the first tile goes in, starting from the center of the room and working outward. Owners also mention the seam marks catching angled light from a window until everything settles, which is cosmetic and temporary.
Why it suits a single-bay garage
A one-car garage is usually close to 160 square feet, which is 40 of these tiles, and the modular geometry means you can cover a workbench corner in an afternoon and add to it later. Because nothing is glued down, the floor is still recoverable when you sell the house.
When to pick something else
Skip it if your floor plan has awkward dimensions. With only 2 x 2 foot pieces and separate border and corner styles, an odd-shaped room can end up with a field of narrow slivers, and that is where budget tiles with loose tabs start to betray you. If you would rather have one continuous sheet with no seams at all, a roll is the better answer.

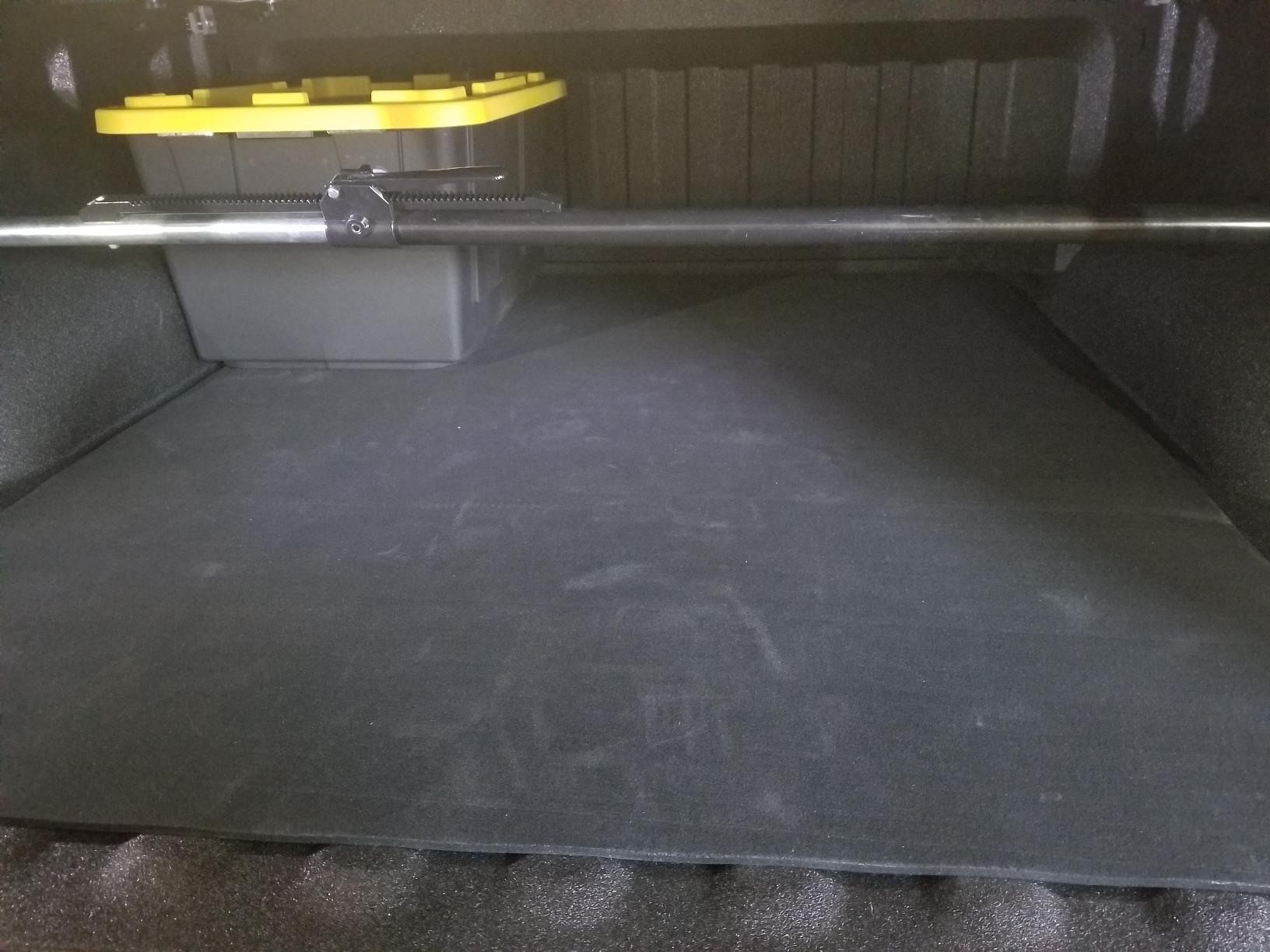

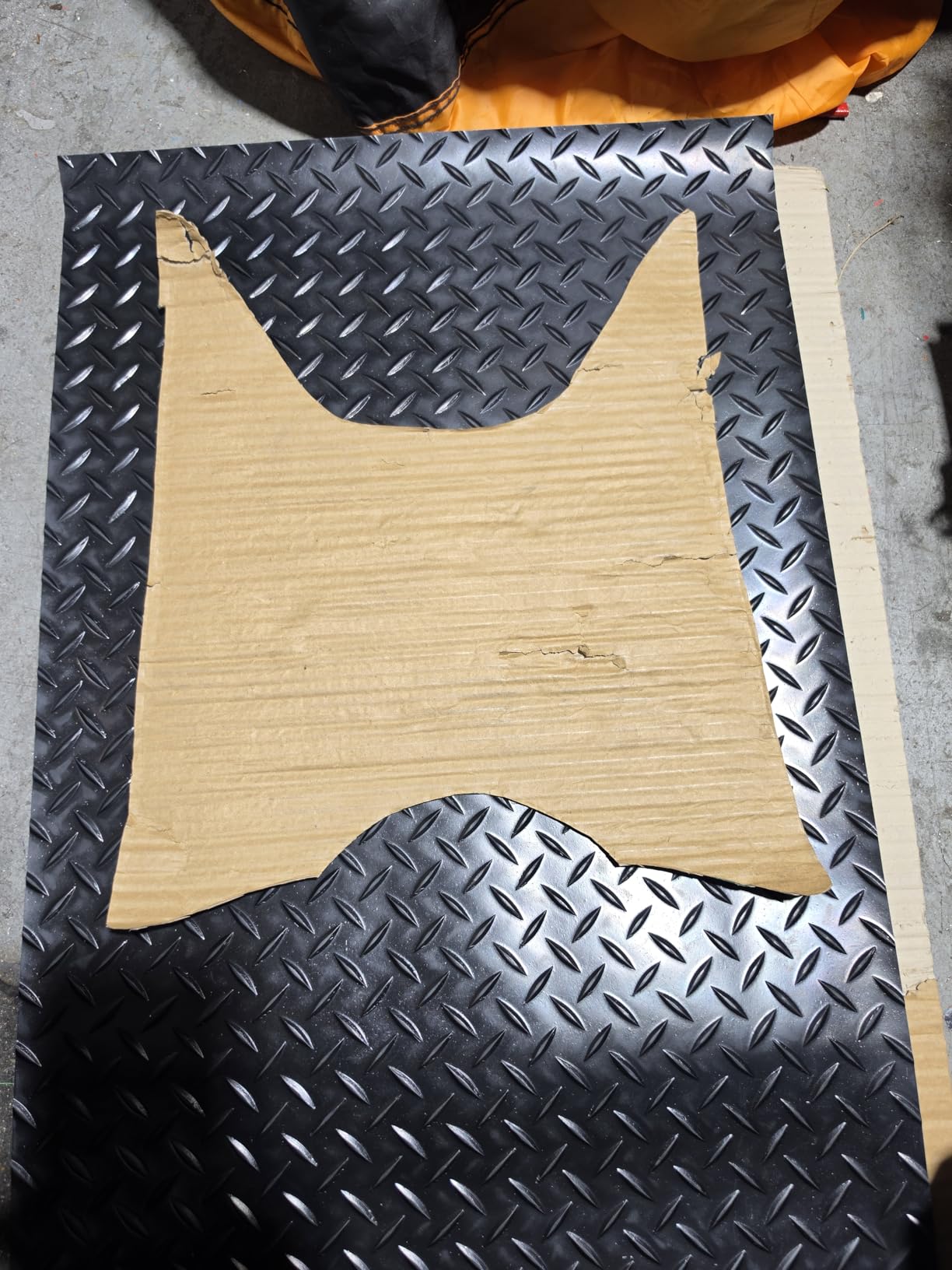

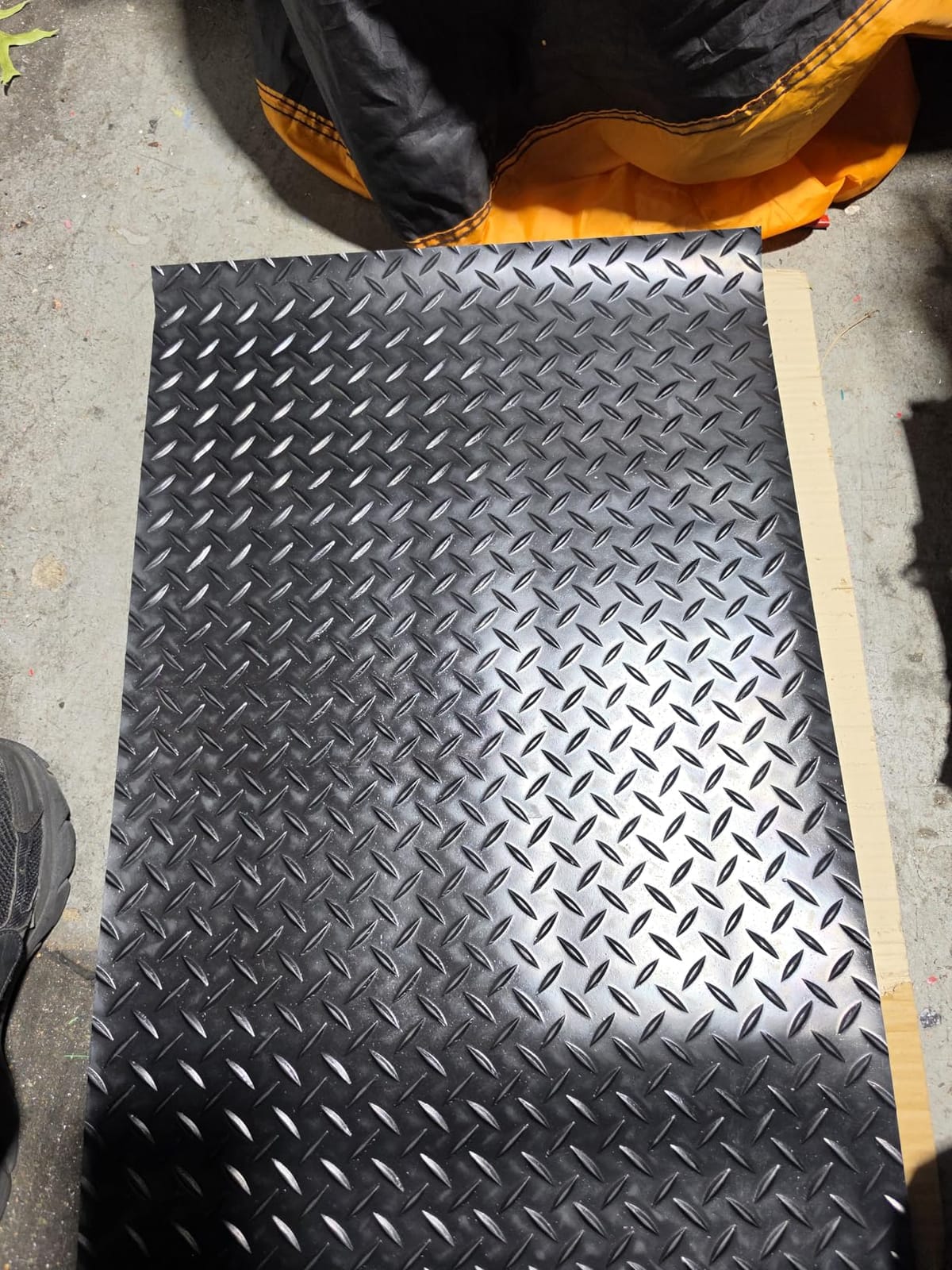

2. Rubber-Cal Diamond-Plate Roll 3 mm x 4 ft x 7 ft – Best for Machine Zones
Rubber-Cal Diamond-Plate Rubber Flooring Roll – 3 mm x 4 ft x 7 ft Roll – Black
3 mm (0.12 inch) thick
84 x 48 inch roll
Diamond-plate pattern
Water resistant and mop-able
Sold in 10+ lengths
Pros
- Heavy and dense enough to stay flat
- Cuts cleanly with a knife and straightedge
- Water resistant and easy to hose down
- Diamond plate grips well underfoot
- Many cut lengths to size the space
Cons
- Thin
- so little real shock absorption
- Edges can curl
- Strong synthetic odor for weeks
- Not square cut from the factory
With 4611 reviews this is the most widely used rubber floor in the category, and for the job it was designed for it is hard to argue with. It sits under treadmills, rowing machines, toolboxes and bike trainers, the places where a leaking water bottle or a rocking machine leg will chew through anything thinner.
The diamond-plate texture is the reason to pick it over a flat mat in a machine zone. It gives real grip when a foot is planted next to a moving flywheel, and the surface is watertight enough that you can hose it down without worrying about it wicking into the slab.
Where it falls short is thickness. At 3 mm it is closer to 2 mm in the flat areas, and while it protects a floor, dropped dumbbells will leave marks in it. The other recurring complaint is odor, described by owners as strong enough to linger for weeks before it fades, which is the most common reaction to any new rubber in this list.
Best used as a targeted layer
Lay this where machines go rather than trying to cover a whole garage with it. Under a treadmill it solves the two real problems, which are condensation reaching the slab and machine drift, and the low entry cost per roll makes it easy to extend a year later.
When to pick something else
Do not choose this as your deadlift surface. There is no shock structure to absorb a dropped bar, and a curl along an edge is a trip hazard if you are walking on it barefoot. Anyone training floor work also wants a mat on top of it, not this surface directly.

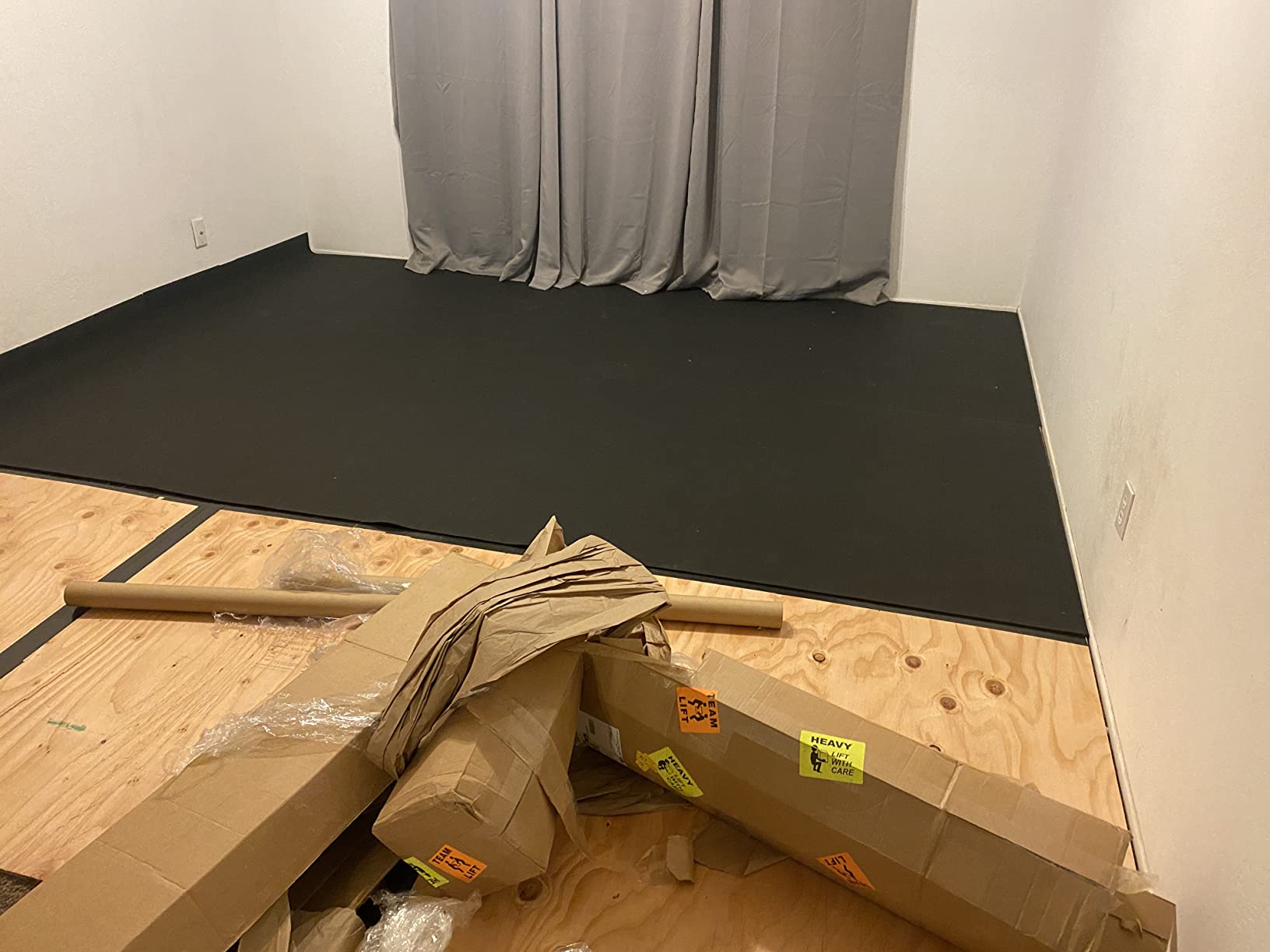

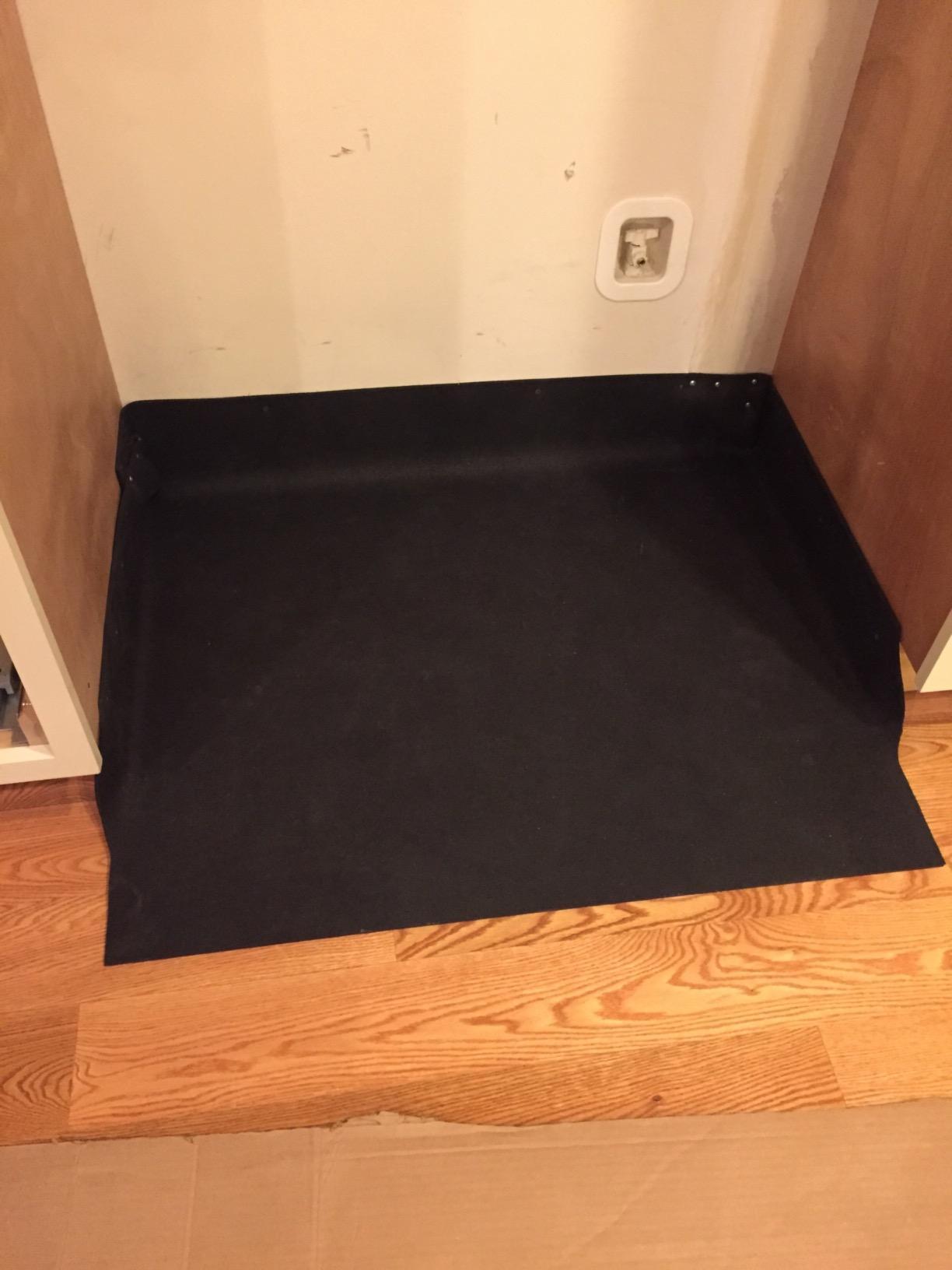

3. Rubber-Cal Elephant Bark 3/16 in Roll – Best for Full-Garage Coverage
Rubber-Cal Elephant Bark Rubber Flooring – 3/16″ x 4 ft x 12 ft, Black
3/16 inch (0.19 in) thick
144 x 48 inch roll
46.5 pounds
Made in the USA from recycled rubber
Pros
- Heavy enough to stay put with no tape
- Cushiony without feeling soft
- Excellent grip holding a barbell or shovel
- Cuts easily with scissors or a knife
- Made in the USA from recycled rubber
Cons
- Sheets often arrive cut on a diagonal
- Sheds crumbs that need sweeping
- Thinner than commercial gym flooring
- Bark texture rough on bare feet
This 12-foot roll is the format most people mean when they say rubber gym flooring, and the Elephant Bark surface is the reason. It is a bark-textured recycled rubber that grips like nothing else in this roundup, which matters when you are setting up for a heavy single or walking across it with chalk on your hands.
At 3/16 inch and 46.5 pounds, it has enough mass to stay where you put it without adhesive. On smooth concrete that mass is doing real work, and it is the same property that makes flat-lay stall mats feel different from interlocking tiles under a barbell.
Two things caught me out. The sheets frequently arrive cut on a diagonal, so panels are different lengths and gaps appear between them unless you trim. It also sheds crumbs at first, so sweep before you judge the surface.
What it is like to live with
Owners of home gyms and kennels report the roll unrolls like a rug, holds position under heavy equipment and lasts years. The smell here is usually described as mild and fading within a few days, which is a genuine advantage over the thinner rolls in this list.
When to pick something else
It is thinner than commercial gym flooring, so dragging a heavy machine across it can crumple and crease the surface permanently. If you move equipment around often, or you spend real time on the floor for mobility work, the rough bark texture will bother bare feet.
4. Rubber-Cal Recycled 1/4 in Mat 4 ft x 2 ft – Best Value
Rubber-Cal “Recycled Flooring” 1/4 in. x 4 ft. x 2 ft. – Black Rubber Mats
1/4 inch thick
48 x 24 inch panel
10 pounds
100 percent recycled rubber
High EPDM content
Pros
- Thick dense rubber that absorbs dropped weight impact
- Flattens immediately with no edge curl
- Cuts cleanly with a knife or circular saw
- Heavy enough to stay put with no adhesive
- Waterproof and easy to clean
Cons
- Rolls often arrive not cut square
- Seams need taping or trimming
- Rough texture for barefoot floor work
- New-rubber smell for about a week
This is the panel I recommend to most people converting a garage, because 1/4 inch is the thickness where the math works. It is heavy enough to absorb a dropped bar, light enough that one person can reposition a section, and it flattens out of the packaging with no edge curl, which removes the most common install complaint in the category.
Construction is 100 percent recycled rubber with a high EPDM content, which explains the waterproof, bleach-cleanable surface. Ten pounds per panel is enough mass to stay put over concrete with no adhesive at all, and it cuts cleanly with a fresh utility knife blade without crumbling at the edge.
The layout problem is real. Roll length and squareness vary, so panels of different sizes leave gaps, and a large room takes trimming to get right. Budget an hour of layout before you cut anything, and order ten percent more than your area needs.
Why it is the value pick
Compare it to 3/8 inch interlocking tiles: you give up a fraction of an inch of thickness and some seam tidiness, and in exchange you get a panel you can lift, trim and swap without wrestling with tabs. For most home gyms that trade is worth making.
When to pick something else
If your training is mostly floor work, the rough recycled texture is unpleasant barefoot, so plan on a dedicated mat over your working area. If appearance matters to you, the panel gaps will show in direct light and there is no seam system to hide them.

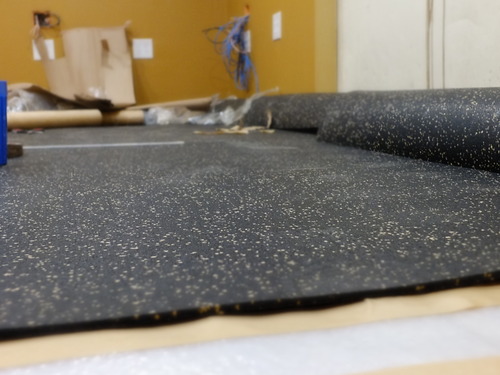

5. Flooring Inc 1/4 in Tough Rubber Roll 4 ft x 10 ft – Best Long Roll
Traxxon by FlooringInc Rubber Gym Flooring Roll, Heavy Duty Recycled Rubber Floor Mats for Home Gym, Garage Gym Floor Mat, Horse Stall Mat (1/4″ Thick | Black | 4’x10′ | 40 Sq Ft)
1/4 inch thick
120 x 48 inch roll
4 ft and 3 ft widths
Made in the USA
Free of PVC vinyl and foam
Pros
- Far more durable than foam puzzle tiles
- Heavy enough to lay flat with minimal tape
- Cuts smoothly with a fresh blade
- Firm grip and real impact resistance
- Long warranty on recycled rubber
Cons
- Strong odor for the first several days
- Rolls often arrive longer than advertised and not square
- Occasional thin and thick spots
- Seams can bubble in sun-warmed areas
A ten-foot roll covers most of a single-bay garage’s long axis in one piece, which means fewer seams and less trimming than a panel format. It is 1/4 inch thick, made in the USA from premium recycled rubber, and it carries a long manufacturer warranty, which is longer than most rubber flooring in this list.
Garage-gym buyers consistently report preferring this to cheap foam locking tiles, citing years of heavy use with no visible wear and a firm, non-slip surface under deadlifts. It is free of PVC, vinyl and foam, and it is the material choice that most directly answers the question of rubber against cheaper alternatives.

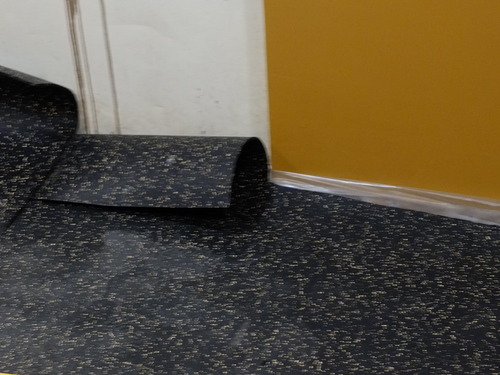

The install friction is real. Rolls often arrive longer than advertised and not cut square, so your seam work is on you, and localized thin or thick spots can catch a foot during floor exercises. A few owners also report units arriving damaged in the roll, so open the package before you plan your day around it.
Watch the seams in direct sun
Sun-warmed sections can bubble at the seam if the material is not fully adhered to the substrate. Adhesive along the seam line, and keeping the garage door closed during the hottest part of the day, both help.
When to pick something else
Buy it in a single length if you can, because a long warranty does not help if your install is three separate seams. And if odor is a dealbreaker for you, the initial off-gassing here is among the stronger in this roundup, taking several days to a week to clear.

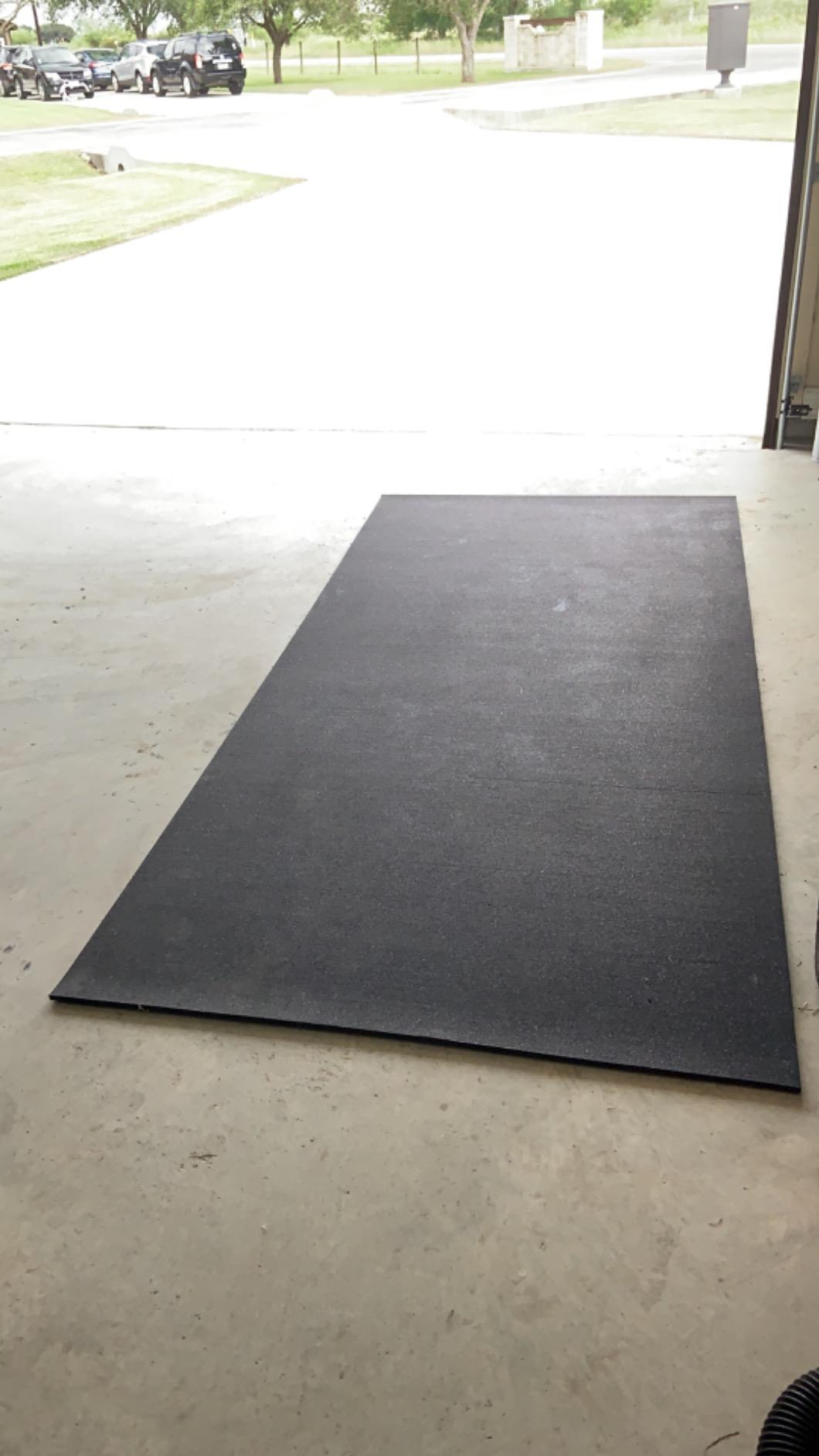

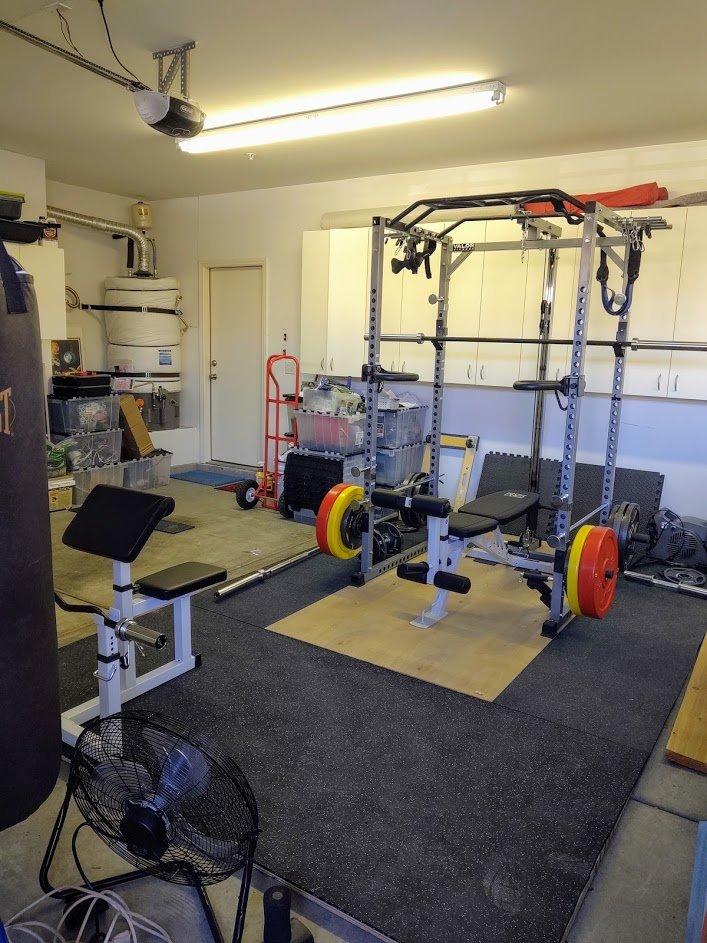

6. American Floor Mats 3/8 in Vulcanized Roll 4 x 5 ft – Most Versatile
American Floor Mats 3/8in (9mm) Thick Solid Black 4′ x 5′ Heavy Duty Rubber Rolls, Protective Exercise Mats, Home Gym Rubber Flooring
3/8 inch (9mm) thick
4 x 5 ft section
100 percent vulcanized rubber
PVC free
Non-porous textured surface
Pros
- Vulcanized non-porous rubber that wipes clean
- Textured non-slip surface grips shoes and bare feet
- Rolls lie flat and butt together tightly
- Dense commercial grade construction
- Sizes up to 4 x 50 ft for any layout
Cons
- Firm surface offers little cushioning for floor work
- Heavy rolls need two people to position
- Longer sizes become unwieldy
This is the closest thing to a commercial weight room floor you can roll out in a garage, and for heavy lifting it is the pick. The reason owners give is that the vulcanized surface is non-porous, so it wipes clean instead of absorbing chalk, sweat and oil.
At 3/8 inch it sits in the same thickness tier as the Fit-Lock tiles but in a continuous sheet, so there are no puzzle seams to catch a barbell plate. The surface is slightly textured and non-slip, and the rolls lie flat without curling, which removes the settling period you get with thinner material.
The trade-off is firmness, and it is not a small one. There is almost no give, so it is a superb deadlift and machine surface and a poor surface for sit-ups, stretching or any extended floor work. Put a mat on top for that zone.
Where it earns its rating
Under treadmills, bikes and lifting machines it does three jobs at once: it stops the machine creeping, it kills the vibration that travels up a wall, and it takes the punishment from incline wheels and bike cleats that destroys foam mats.
When to pick something else
Do not buy a long section without a second person. Positioning a heavy roll is a two-person job, and sizes above 4 x 20 ft become both expensive and awkward to handle through a garage door opening.

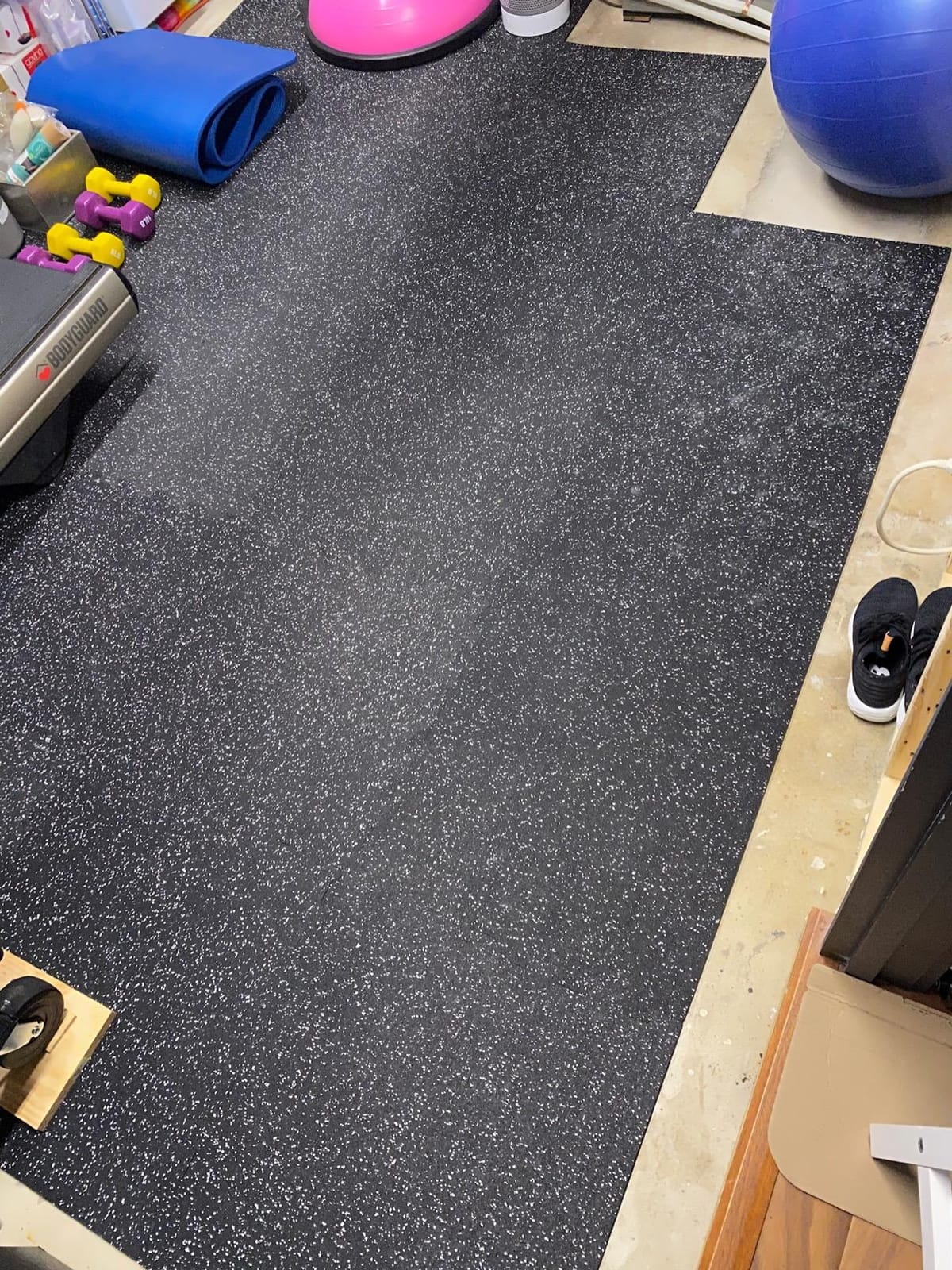

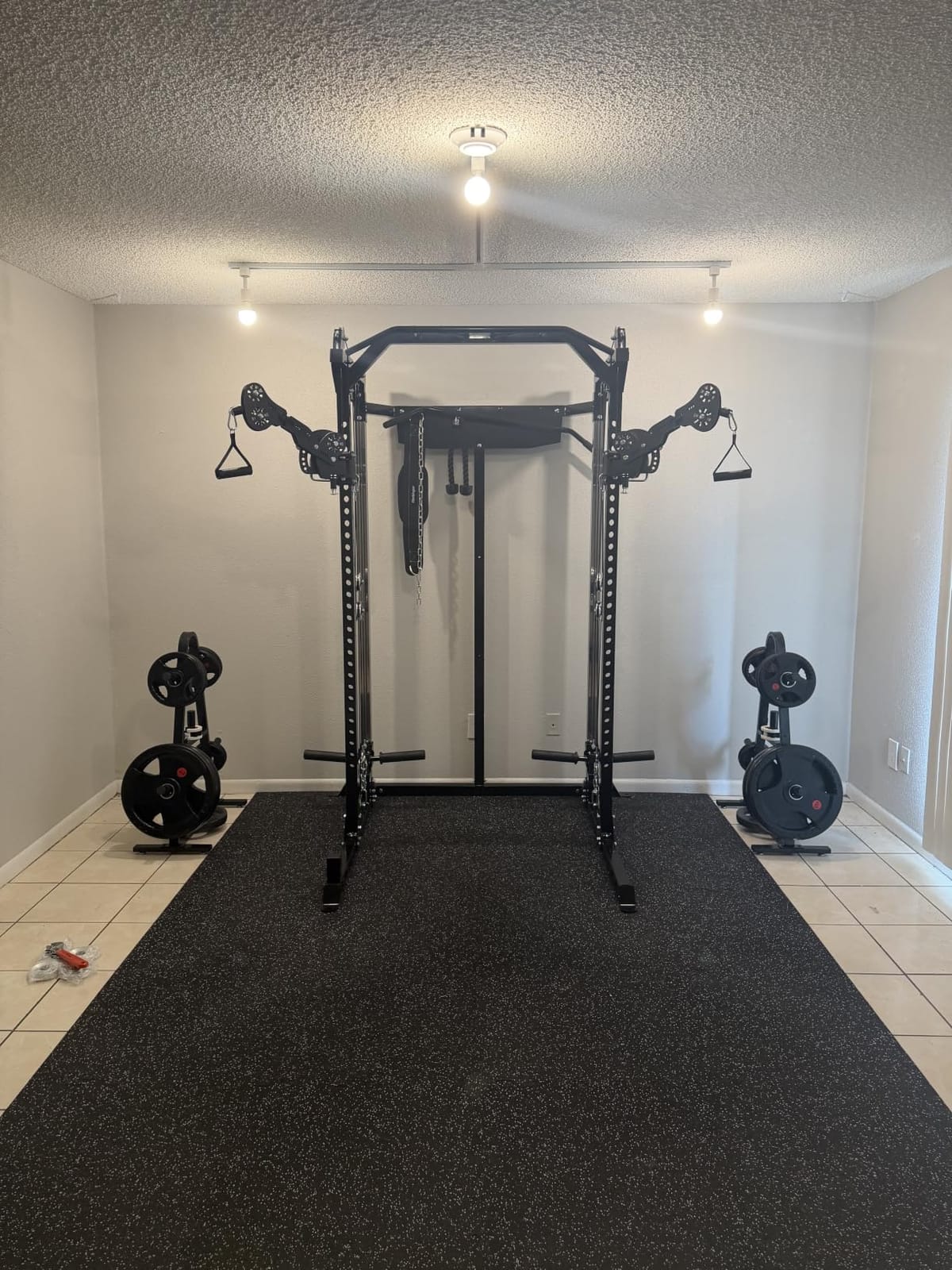

7. IncStores 8mm Interlocking Rubber Tiles Kit – Best for Fixed-Size Kits
IncStores 8mm Thick Strong Rubber Interlocking Floor Tiles | Flexible Recycled Rubber for a Stronger and Safer Basement, Home Gym, Shed, or Trailer | Blue, 9 Center Tiles
8 mm thick
23 x 23 inch tiles
Recycled SBR with EPDM flecks
Center, border and corner tiles
Pros
- Low profile tiles that install without adhesive
- Completely waterproof and easy to wipe clean
- Center
- border and corner pieces for an even edge
- Good slip resistance under benches and machines
Cons
- Only sold in fixed finished-area kit sizes
- Thinner than a quarter inch roll so less shock absorption
- Seams collect dust
These kits are the answer for a basement or a garage bay with a standard shape, because the manufacturer has already worked out the finished area. Kits run from 3 ft 10 in by 3 ft 10 in up to 7 ft 8 in by 9 ft 7 in, and the tiles include dedicated center, border and corner pieces so the outer edge looks finished rather than chopped.
Material is recycled SBR rubber with colored EPDM virgin rubber flecks, and it is completely waterproof. The 8mm profile means a low step at the door, which is a genuine advantage in a converted garage where the floor is already below street level.
The constraint is the reason this is not higher on the list. Fixed kit sizing means an unusual room shape leaves you with gaps you have to fill some other way, and 8mm gives less cushion under a heavy dumbbell than a quarter inch roll would.
Best for a fixed area you will not change
If you are flooring one zone, such as under a rack and bench in a corner, and you can match the kit to that footprint, the low profile and clean edges are a good trade. The pieces stay where you put them, and swapping a damaged tile is simple.
When to pick something else
Not if you are deadlifting, and not if your room is an odd shape. Eight millimeters is equipment protection, not impact absorption, and the puzzle-style seams can collect dust that you will notice under angled light.

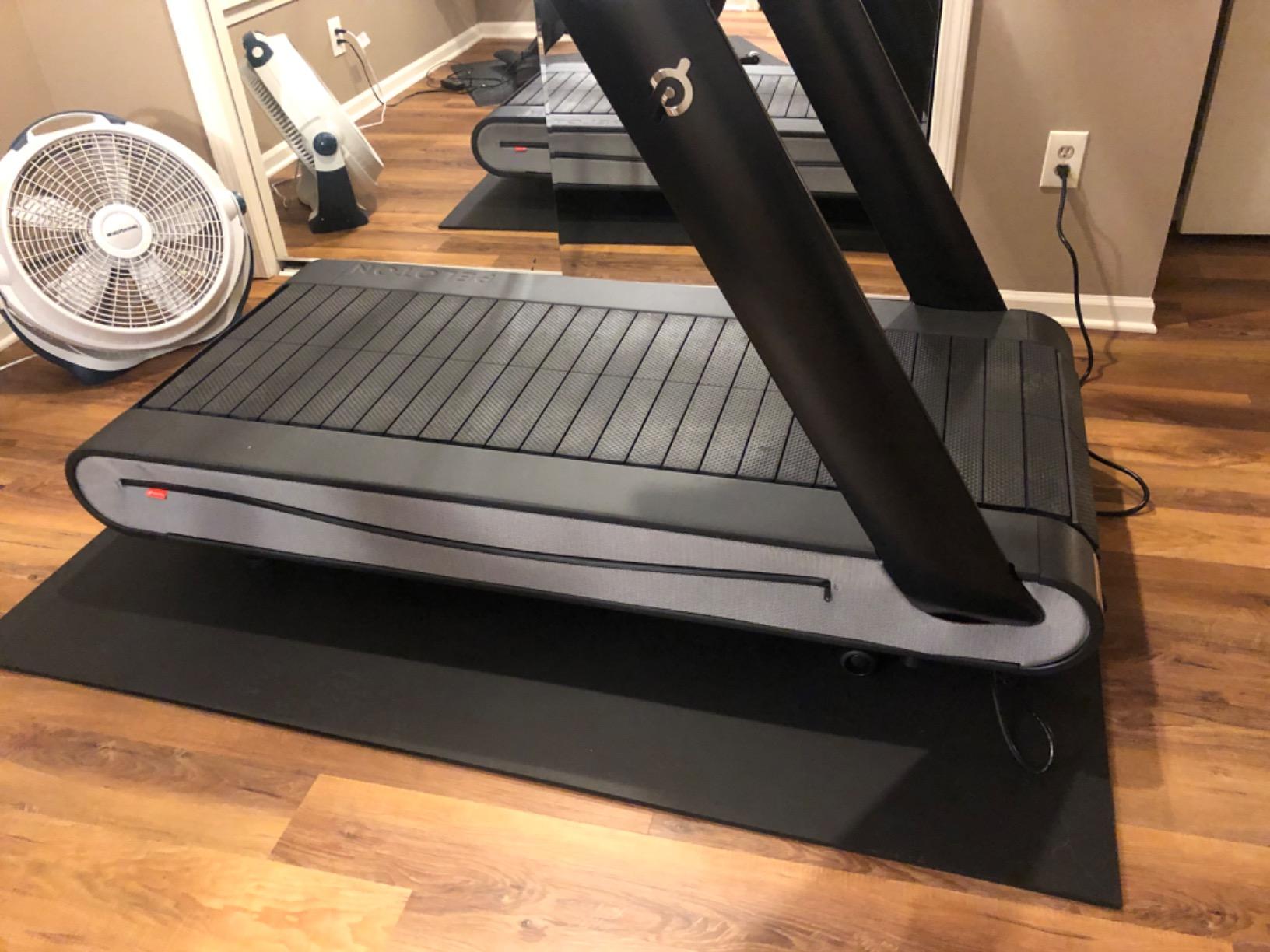

8. IncStores 4 x 6 ft Premium Vulcanized Mat – Best Under Heavy Machines
IncStores 4′ x 6′ Premium Durable Rubber Mat Home or Commercial Gym Flooring, 1 Mat, Gray
3/8 inch (10mm) thick
72 x 48 inch mat
Grey vulcanized rubber with recycled tire rubber
Odor resistant and liquid proof
Pros
- Resists punctures from treadmill incline wheels and bike cleats
- Does not move once placed and stays flat
- Cut very straight to size
- Attenuates vibration and protects hardwood and epoxy
- Odor resistant construction
Cons
- Extremely heavy to move
- Medium rubber smell for the first few days
- Large mats need real scrubbing
- Costs more per square foot than thin rolls

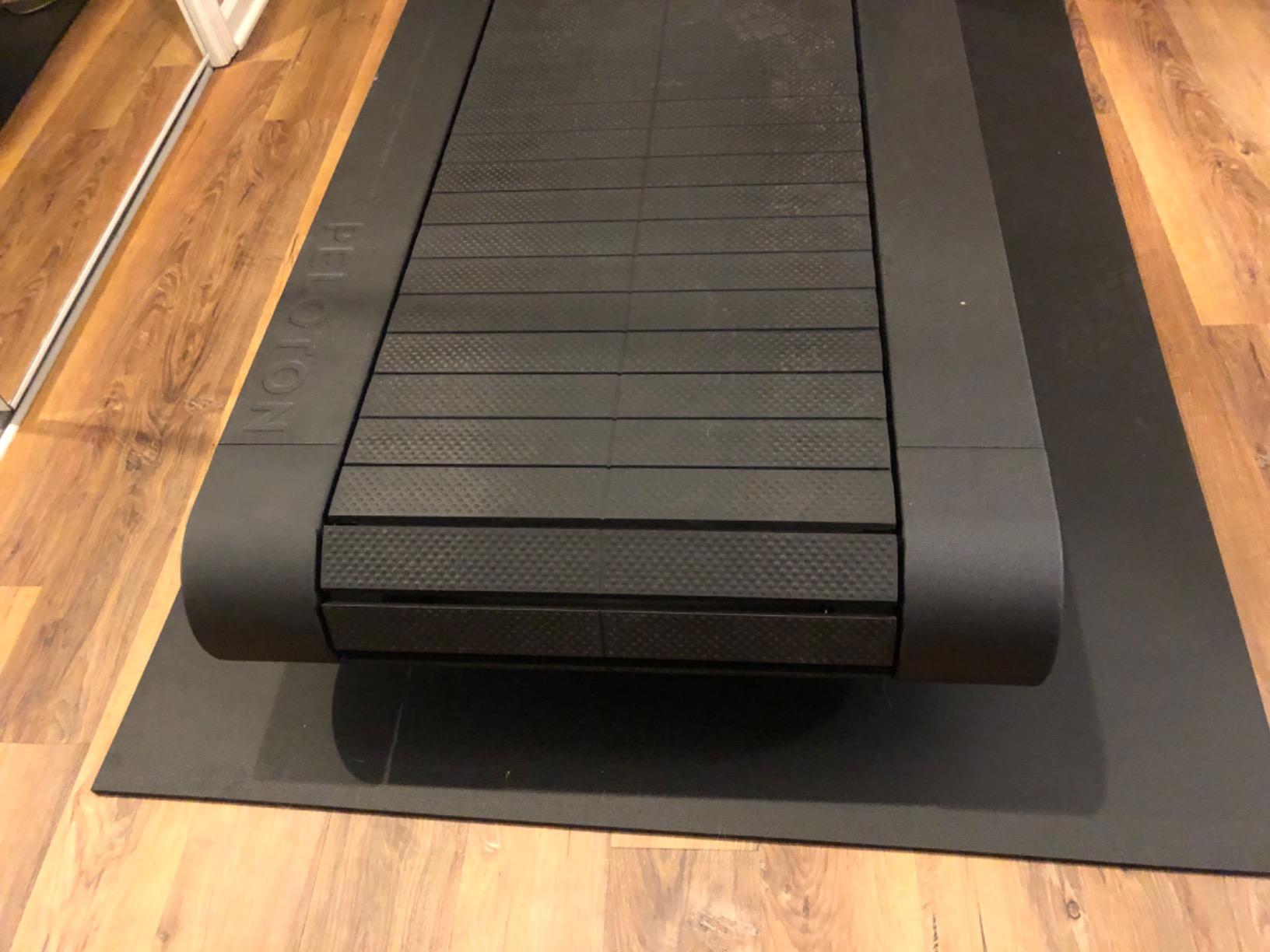

This is the mat for one specific job: a very heavy machine on a floor you care about. Owners running 450 pound plus treadmills report that incline wheels which destroyed foam mats leave this one untouched, and the mass keeps the machine from creeping across the slab at all.
It is a 4 x 6 foot single mat at 3/8 inch, vulcanized rubber with recycled tire rubber. It cuts straight to size, flattens quickly after unrolling, and attenuates vibration well enough to protect hardwood and epoxy underneath.
Weight is the dominant factor in practice. It does not move and it is not easy to move, which is a feature until you want to sweep underneath or change the layout. Large mats of this type also take real scrubbing to clean.
Why it outlasts foam under machines
A foam mat compresses permanently under a static load, so treadmill rails and bike feet slowly sink into it. Vulcanized rubber at this density resists puncture instead of compressing, which is why this is the pick for anything with wheels or feet that stay put.
When to pick something else
A single 4 x 6 foot mat will not cover a garage, and buying several to tile the space is both heavier and more costly per square foot than a roll. Use it as a targeted platform under the heaviest machine, not as a full floor.

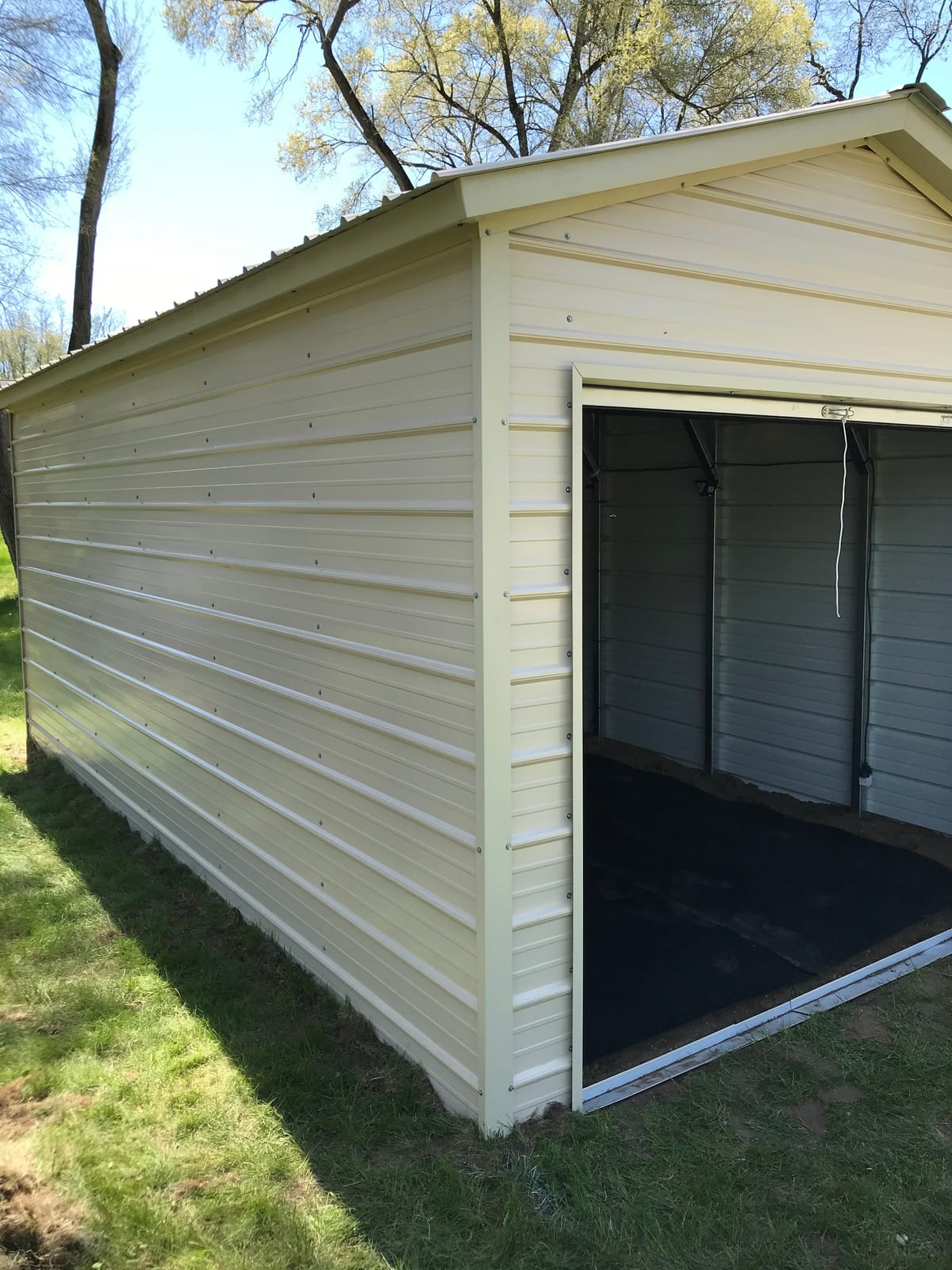

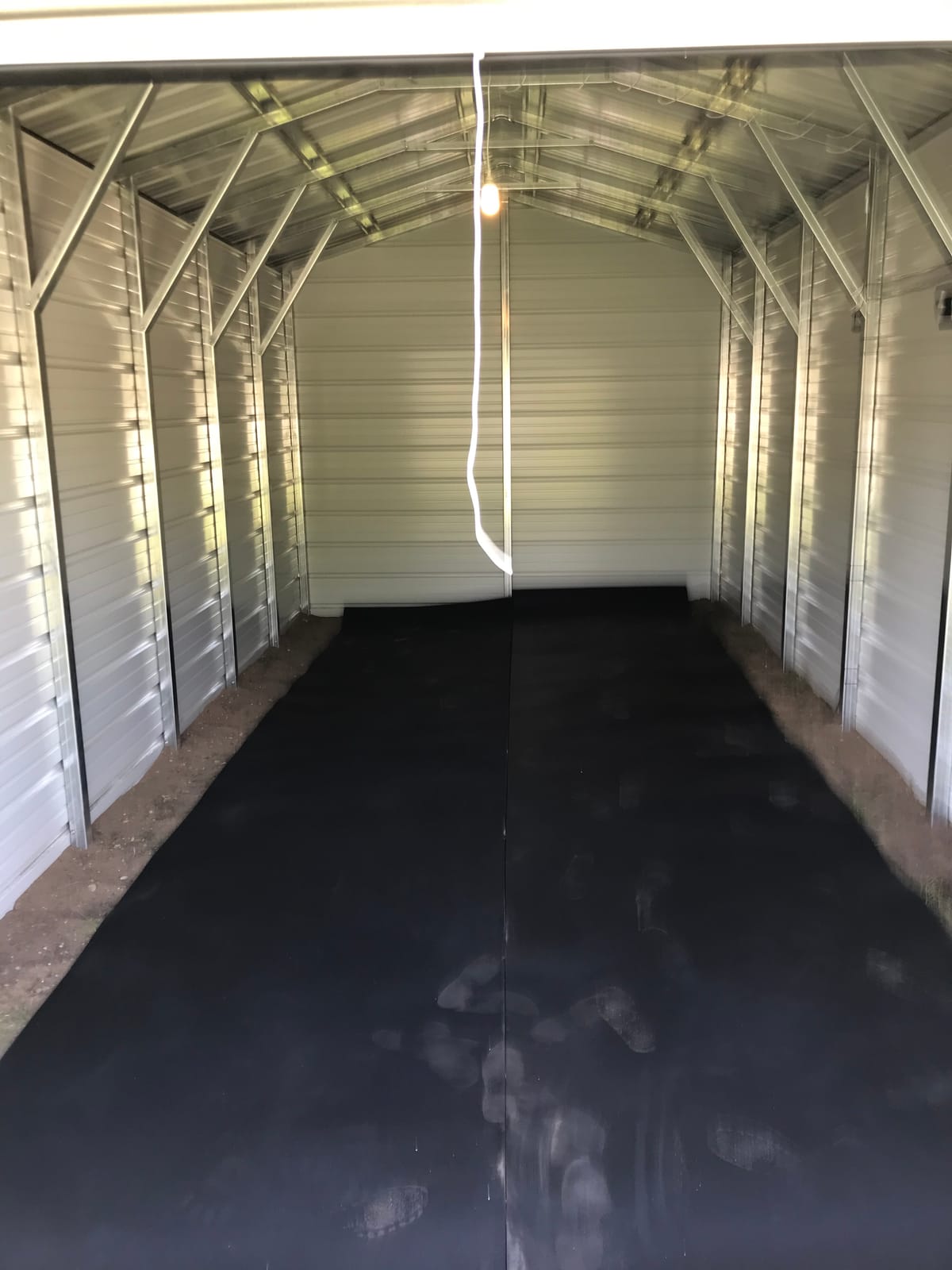

9. Playsafer Genaflex 8mm Rubber Gym Floor Roll 4 x 4 ft – Best Finished Gym Look
Playsafer Genaflex Rubber Gym Floor Mat, Heavy Duty Commercial Protective Gym Flooring Roll – 8mm Thick (Black, 4′ X 4′)
8 mm thick
48 x 48 inch roll
16 square feet
Recycled rubber fleck surface
Pros
- Classic commercial fleck look for a finished appearance
- Reduces noise
- vibration and impact
- Non-slip stain-resistant surface that wipes clean
- Rolls out and trims easily for a seamless install
Cons
- Thinnest option in this list at 8 mm
- Flecks can fade with heavy sunlight
- Rolls may need time to lie fully flat
Where most black rubber reads as a garage surface, the Genaflex reads as a gym. The color fleck is the commercial look that shows up in fitness studios, and at 16 square feet per roll it covers a generous patch in a single piece with no seams to trip over.
Buyers like that it dampens noise and vibration in basements and garages, and that rolling it out and trimming it is genuinely easy. It is a recycled rubber surface that wipes clean, which matters if kids or pets share the room.
Be realistic about the thickness. At 8mm this is protective underlay and sound control rather than a deadlift surface, and a larger share of critical ratings than the category average reflects durability expectations set too high for material this thin.
Best used as a finished surface over a work zone
Stretching, mobility, core work and warm-ups happen barefoot and kneeling, and this handles all of that well. The textured non-slip surface also gives you grip for jump rope and rowing intervals, where a hard floor would be miserable.
When to pick something else
Do not stand on it with a loaded bar overhead expecting shock absorption, and expect the fleck to fade if the roll sits in direct sun through a garage door all day. For dropped weights, layer a thicker product over this rather than under it.

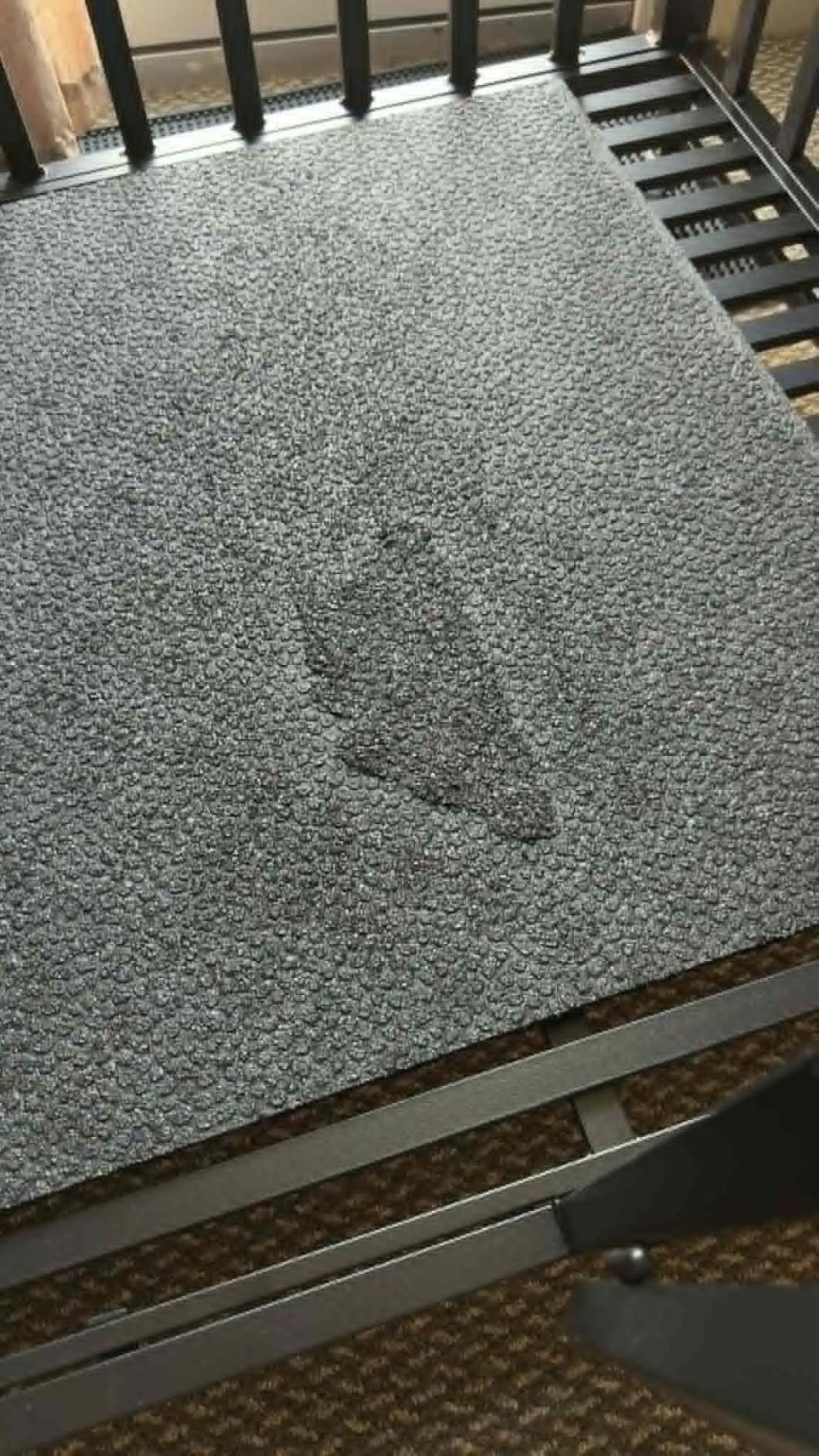

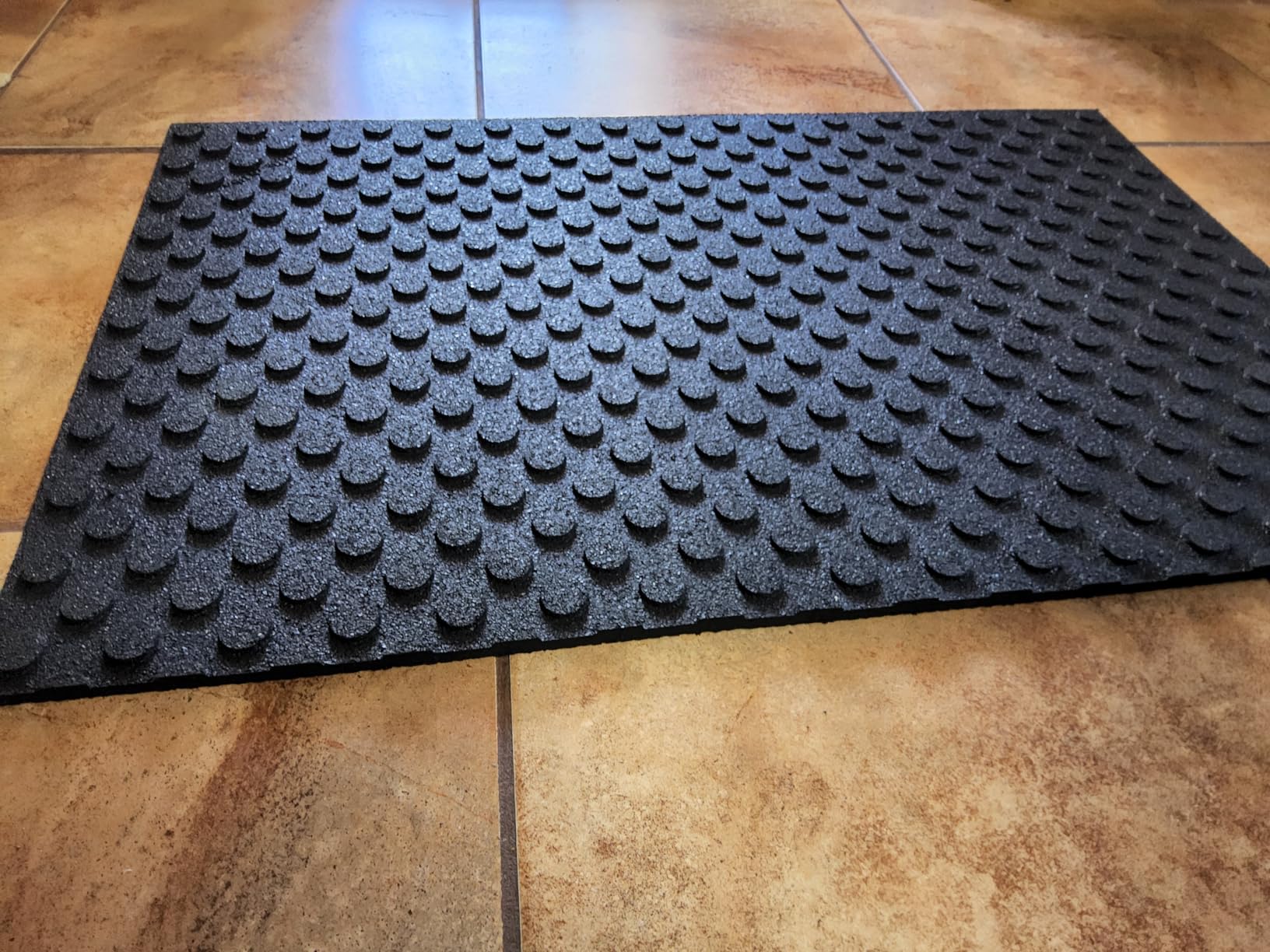

10. Mohawk Home Heavy Duty Rubber Stall Mat 3 x 4 ft – Budget Pick
Mohawk Home Heavy Duty Rubber Stall Mat – Gym Floor- Under Dog Crate – All Purpose Utility 3′ x 4′ – 1/2″ Thick – Diamond Texture
1/2 inch thick
48 x 36 inch mat
12 square feet
Recycled rubber
Diamond texture
Water resistant
Pros
- Thickest option in this list at one half inch
- Absorbs impact and sound under dropped weights
- High and low backing texture for stable grip
- Rated for indoor and outdoor exposure
- Low cost per module makes large areas easy
Cons
- Sold as a doormat rather than purpose-built gym flooring
- Hard surface gives little joint cushioning
- Diamond texture can catch bare feet
- Modules do not interlock so seams show
At 1/2 inch this is the thickest material on the list, and it is the cheapest way to add serious rubber in modules. The diamond texture with high and low backing holds firmly on garage concrete, and the recycled rubber is rated for indoor and outdoor exposure to sun, rain, sleet and snow.
Buyers treat it as a budget way to add half an inch of protection under dumbbells, crates and equipment. Care is simple: vacuum, sweep or hose it off and air dry, which fits a working garage far better than anything needing a special cleaner.
The compromise is honesty about what it is. It is a doormat and utility mat, not a fitted gym floor. The modules do not interlock, so seams are visible and edges can lift, and the hard surface is not comfortable for extended floor work.
Best for covering a big area cheaply
When the goal is impact and sound absorption across a wide floor at the lowest cost per square foot, nothing else here matches it. Twelve square feet per module also means you can buy a few now and add more later as the gym grows.
When to pick something else
Skip it for calisthenics, lunges and stretching, where the diamond texture catches toes and the surface gives nothing back to your joints. It also does not hide its seams, so if a uniform finished look is part of the goal, choose a roll or an interlocking tile.
Rubber Rolls vs Rubber Tiles vs Horse Stall Mats: Which Format Should You Buy?
This is the most repeated question in every garage gym forum, and the answer comes down to how much disruption you can tolerate during install and how permanent you want the floor to be.
Interlocking rubber tiles are the most forgiving format. No adhesive, no cutting to exact length, and one damaged tile can be replaced on its own. The trade-off is weight and geometry, because 2 x 2 foot pieces rarely finish a room exactly and are hard to reposition once down.
Rubber rolls give the best finished look and the fewest seams, which is what you want if noise and appearance matter. They are the hardest to move, and installing one properly means trimming edges, taping seams and getting the layout right before the first cut.
Flat-lay horse stall mats are the cheapest per square foot and the most forgiving to lay. They need no adhesive at all. They slide on smooth concrete, show gaps between pieces, and the seams are visible, which is why you see people taping them down.
Our rule of thumb: tiles for a room you have finished measuring, rolls for a room where look and noise come first, flat-lay mats for the largest area on the tightest budget. If you only want one product on this list, the Fit-Lock tiles and the quarter inch panels cover the most garage shapes.
How to Install Rubber Flooring on a Concrete Garage Slab
Measure twice, including the space a walk-in door needs, and order ten percent more than the area. That overage is not padding, it is the material you lose to posts, wall lines, the garage door track and the floor drain.
Prep the slab properly. Sweep and vacuum, patch any cracks, and grind down any paint or sealer that is flaking. A sealed concrete surface is fine, but a dusty or powdery one will let the floor move later.
For rolls, roll them out in the direction of the room long axis and let them relax before you trim. Tapered aluminum edge along the walls stops the rubber from curling as it settles, and double-sided tape along every seam keeps a sun-warmed section from bubbling. Trim around posts and cut a circle around the drain cover rather than laying over it.
For tiles, start at the center of the room and work outward so the cuts land at the walls. For flat-lay mats, tape the edges with double-sided carpet tape if you have smooth concrete, and leave an expansion gap rather than forcing the pieces tight together.
Let everything settle for a day or two before you load it with a rack, and keep the garage door open to move the off-gassing out.
Can Mold Grow Under Rubber Flooring? Handling Moisture in an Unheated Garage
Rubber itself does not support mold growth, and the non-porous vulcanized products in this list are specifically described as preventing it. The risk is not in the floor, it is in what is trapped between the rubber and your slab.
Concrete is porous and a cold garage in winter produces condensation, the same dew point you see on a single-pane window, except it forms on the underside of your floor. If that moisture cannot escape, you have created a damp, dark, oxygen-poor surface, and that is where trouble starts.
The fix is a moisture barrier. Lay 6 mil poly sheeting over the slab, tape the seams generously and run the plastic a couple of inches up the walls before the rubber goes down. This is the single step that most skips and most regrets skipping.
Look for these warning signs before you cover anything: white powder on the slab, a musty smell when the door opens, or damp patches that appear on the concrete after a cold night. If you see them, treat the slab first and lay no flooring until it is dry.
Finally, control the air. A dehumidifier in a cold-weather garage does more for the floor than any flooring choice, because it lowers the dew point and stops condensation forming in the first place.
How to Get the Rubber Smell Out of New Flooring
The rubber smell is the number one complaint about this category, and it is not dangerous. It is off-gassing, meaning residual manufacturing volatiles escaping the material, and it is strongest in the first one to four weeks.
Open the garage door, remove the rubber from any sealed packaging, and run a box fan pointed at the floor. Cross-ventilation works better than either alone, and sunlight on a closed floor warms the material and speeds the release.
On odor specifically, the ordering is predictable. Thinner rolls and low-density recycled crumb rubber off-gas hardest and longest, vulcanized products sit in the middle, and the thickest dense material clears fastest. Our picks range from a smell that fades in a few days to one that some owners report taking a couple of months.
What is not worth doing: soaking the floor in vinegar or harsh chemicals, which can attack the surface, and painting over it. Air it out and let it happen on its own schedule.
How Much Rubber Flooring Do You Need? Coverage by Garage Size
Work out the floor area in square feet, then add ten percent. For a standard two-car garage that is roughly 400 square feet, and a single-bay garage is about 160.
At 24 x 24 inches, one interlocking tile covers 4 square feet, so 400 square feet is 100 tiles, and 160 square feet is 40. A 4 x 5 foot roll covers 20 square feet, so 400 square feet is 20 rolls with the seams cut and discarded, and a 4 x 6 foot mat covers 24 square feet, so a two-car garage is 17 mats.
The 3 x 4 foot stall mat covers 12 square feet, making 400 square feet roughly 34 modules. The 4 x 4 foot Genaflex roll covers 16 square feet, which is 25 rolls for the same room.
Before you order, walk the room and list the obstacles. Posts, a floor drain, the garage door track and a walk-in door swing can each eat several square feet, and the ten percent overage is what covers the walls. Buying short of that number is the most common reason a floor ends at an awkward cut.
One alternative is worth considering before you cover everything. Flooring an 8 x 8 foot platform under a power rack and deadlifting area, then using a thinner product or nothing at all for the rest, focuses your money where the impact actually is. Several experienced lifters use exactly this approach.
Buying Guide: Rubber vs EVA Foam vs Vinyl and What Else Matters
Rubber versus EVA foam. EVA foam puzzle tiles are the default cheap answer, and they are a bad one for a weight room. Foam compresses permanently under a static load, so squat rack feet, bench feet and machine legs sink and stay sunk, and any dropped bar destroys it. Rubber does not do this. Foam is fine for a kids’ play area or a stretching zone.
Rubber versus vinyl and epoxy. Vinyl plank is cheap, easy to clean and impervious to water, which makes it a reasonable choice for a basement gym with no heavy lifting. Epoxy is hard, quiet and permanent but unforgiving, and it offers nothing for a dropped weight. Rubber sits between them, taking more punishment and damping more vibration than either.
Material composition. Vulcanized rubber is cured under heat and pressure, which makes it denser, harder and longer lasting. Crumb and recycled rubber is chopped from reclaimed tires and factory scrap, which makes it cheaper and softer but also smellier. A higher EPDM content means a better wear surface and indoor-outdoor tolerance.

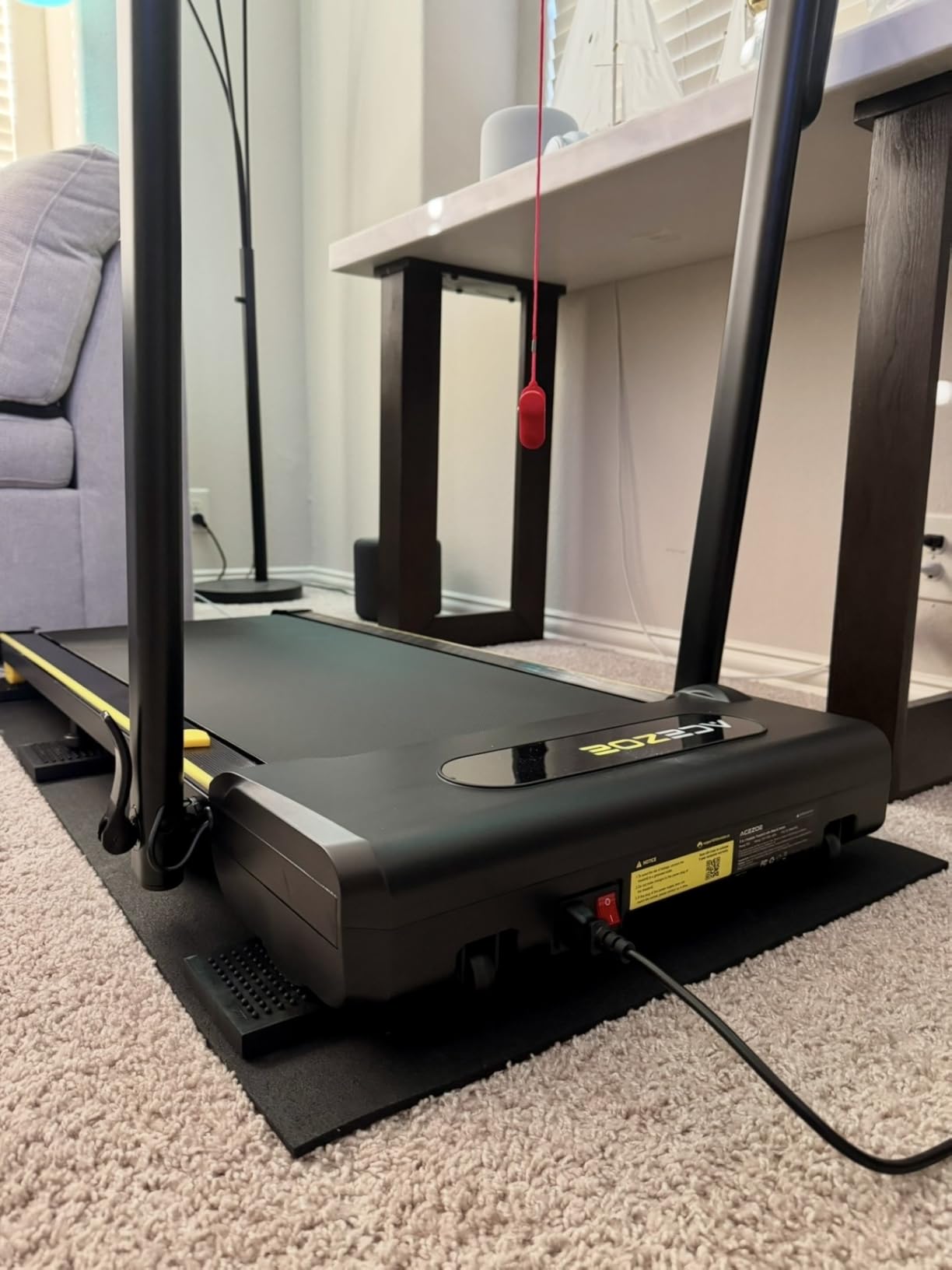

Noise. If a wall is shared with living space, this matters more than most buyers expect. Dense rubber under a treadmill and a bike cuts transmitted vibration dramatically. Continuous rolls do better than tiled formats, because there is no seam to ring.
Portability and permanence. Interlocking tiles can be lifted and taken with you, which matters in a rental. Flat-lay mats are the easiest to move individually. Heavy rolls and large mats are effectively permanent once placed, so measure twice.
Maintenance. Avoid oil-based products and solvents on any rubber surface, and never use bleach on a textured recycled crumb floor. A damp mop with mild detergent handles almost everything, and a soft broom keeps crumbs from working into a seam.
Where to buy. Retail farm and home improvement stores let you handle stall mats in person and will often cut a roll, which is the deciding factor for a large roll order. Online marketplaces are better for interlocking tiles in kit sizes, and specialty flooring retailers carry the widest selection of roll lengths.
Frequently Asked Questions
What is the best flooring for a garage gym?
Solid rubber in a 3/8 inch to 3/4 inch thickness is the best flooring for a garage gym. Match the format to the room: interlocking tiles for an odd-shaped space, a continuous roll for the best finished look and lowest noise, and flat-lay stall mats for the largest area on the tightest budget. All three protect the slab and dampen vibration if the material is dense rubber rather than foam.
Which is better for gym flooring, tiles or rolls?
Rolls are better for a finished look, minimal seams and the lowest noise transmission, and tiles are better for a room with awkward dimensions or a rental where you may need to move the floor later. Flat-lay stall mats are the budget option. If you only want one recommendation, a 3/8 inch interlocking tile handles the most garage shapes with no adhesive and no square cuts to fight.
How thick should rubber gym flooring be?
Use 3/4 inch for any barbell work or frequent drops, 1/2 inch for a rack with roughly 400 pounds and dumbbell training, and 3/8 inch as the practical default for a mixed-use floor covering machines, benches and general training. Below 3/8 inch, material is equipment protection and noise control rather than impact absorption.
Can mold grow under rubber flooring?
Rubber does not support mold growth, and non-porous vulcanized products resist it, but condensation can form on the underside of a floor over an unheated concrete slab. Lay 6 mil poly sheeting over the slab with taped seams before installing, look for white powder or a musty smell as warning signs, and run a dehumidifier to lower the dew point and stop condensation forming.
What are the downsides of rubber flooring?
The main downsides are weight, install effort and a rubber smell that can last several weeks. Heavier tiles and rolls need two people to position, flat-lay mats slide on smooth concrete and show gaps, and thinner recycled crumb material off-gasses more than dense vulcanized rubber. A firm vulcanized surface also gives little cushioning for extended floor work.
The Bottom Line for Your Garage Gym
The best rubber gym flooring for garage gyms is the Fit-Lock 3/8 inch interlocking tile if you want one answer, because it is dense, adhesive-free and forgiving in almost any room shape. For a tight budget, the quarter inch recycled panels give you the most install-friendly material per square foot, and for a machine zone the diamond-plate roll does the job nothing else does.
Whatever you choose, put down 6 mil poly before you lay anything, and buy ten percent more than you measure. Both of those steps take an afternoon and both are the difference between a floor you are happy with for years and one you replace. Our [best headphones for the gym](https://www.theclassicalshop.net/best-headphones-for-the-gym/) and [best JBL headphones for the gym](https://www.theclassicalshop.net/best-jbl-headphones-for-the-gym/) roundups cover the other half of building a usable training space in 2026.
